  1. Outdoor Intelligent Middle Speed Dome Camera

  2. Outdoor Intelligent Middle Speed Dome Camera


    Model:BT-MO

    Place of Origin: Guangdong China (Mainland)




  3. Key Features:
     * Double layer of Die-cast Aluminum sell install easily and quickly, can dissipate heat more sufficiently. Black inner shell makes sharper monitor
     * Be compatible with common cassette mechanism of camera, like SONY, HITACHI, LG and other famous brands with high resolution
     * Running smoothly with low speed, subwoofer noise and no image dithering
     * 64 preset positions.
     * 1 Patrol tracking routs and 1 auto level scan routs.
     * Variable rotation(pan 0 °ę 80º/s ;tilt 0 °ę 40º/s); Auto level scan
     * Continuous 360 º rotations in Omni-directions with no fade zone; Rotation speed can be adjusted by tilting angle of the joystick
     * Auto flips with vertical 180 º in Omni-directions, no fade zone.
     * RS485 integrated various of protocols, PELCO-D,PELCO-P etc
     * 3 class lightning defend, built in 3000V lightning proof, surge resistant
     * IP 66 outer cover with all day protection; Built-in auto thermostatic control system

    Specification:

    Electrical specifications

    Power Input AC24V/2A (no identity "+"or "-")
    Power Consumption 36W
    Settings:
    Decoder Built-in
    Electric machine Excellent stepping motor
    Preset Position 64 presets
    Left&Right Rotation Range 360°„Continuous Rotation
    Left&Right Speed 0.1°„£≠80°„/S
    Up&Down Rotation Range 90°„Vertical, 180°„Auto flip
    Up&Down Speed 0.1°„£≠40°„/S
    Control Method RS485
    Protocol Pelco-P/D etc
    Baud rate 2400bps/4800bps/9600bps/19200bps
    Working environment:
    Working Temperature Indoor:0ºC ~ 50ºC,Outdoor:-40ºC ~60ºC
    Level of Protection IP66 Shell, Lightning Proof, Surge Resistant
    Physical:

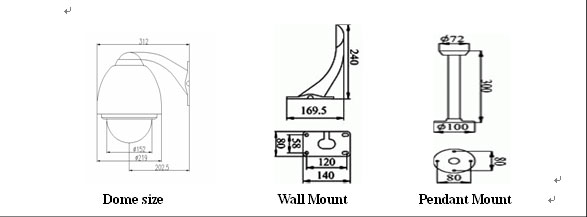

    Packing Dimension(mm) L355mm*W330mm*H410mm
    Weight (kg) Wall Mount: 5.75kg Lifting Mount: 5.9 kg
