Your Position:Home >> Mini Spy Camera > > 0.008Lux 520TVL Mini CCTV Video SPY Camera

Related products

  1. 0.008Lux 520TVL Mini CCTV Video SPY Camera

  2. 0.008Lux 520TVL Mini CCTV Video SPY Camera

    Brand New Smallest HD & Night Vision Mini CCTV Video SPY Camera


    Condition:New
    Model : MSPYSMALLEST


  3. Features & functions:

    It's an ultra small  high definition CCTV camera with excellent night vision.
    Size is 22.5 X 12 X 10.5mm only, Weight is 2g! Very easy to install and conceal.
    Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
    Full TV system. Applicable worldwide.
    Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

    Specification:

    PICK UP ELEMENT Single chip 1/3 CMOS
    SYSTEM NTSC PAL
    NUMBER OF PIXEL NTSC:656(H) x 492(V) PAL:786(H) x 576(V)
    SENSOR DIMENSION 4.75mm(H)  x 3.55mm(V)
    HORIZONTAL RESOLUTION Approximately 520TV Lines
    SENSITIVITY 0.008Lux/F1.2
    LENS & VIEW ANGLE 0.5mm F2.0 / 55 deg
    S/N RATIO 48dB
    AUTO GAIN CONTROL OUT
    WHITE BALANCE CONTROL OUT
    BACK LIGHT COMPENSATION OUT
    VIDEO OUT 1.0V p-p/75ohm
    AUDIO OUT 1.0V p-p/1Kohm
    SIZE (L x W x H) 22.5mm x 12mm x 10.5mm
    WEIGHT 2g
    WORK CURRENT 75mA
    POWER REQUIREMENT DC 3.6V-5V
    OPERATING TEMPERATURE - 10 C ~ +50C deg, less than 90% RH
    Connection PIN1: Red DC5V PIN2: Black GND PIN3: Yellow VIDEO OUT PIN4: White AUDIO OUT


    0.008Lux 520TVL Mini CCTV Video SPY Camera
    0.008Lux 520TVL Mini CCTV Video SPY Camera
    0.008Lux 520TVL Mini CCTV Video SPY Camera
    Package:
    1*Mini camera ;
    1*AC adapter

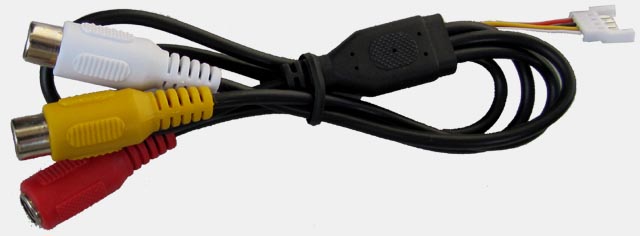

    1*RCA/BNC cable (Only one cable, if no choice, we will ship at random)
