Condition:New
Model:TEL12GDV
Warranty 1 year!

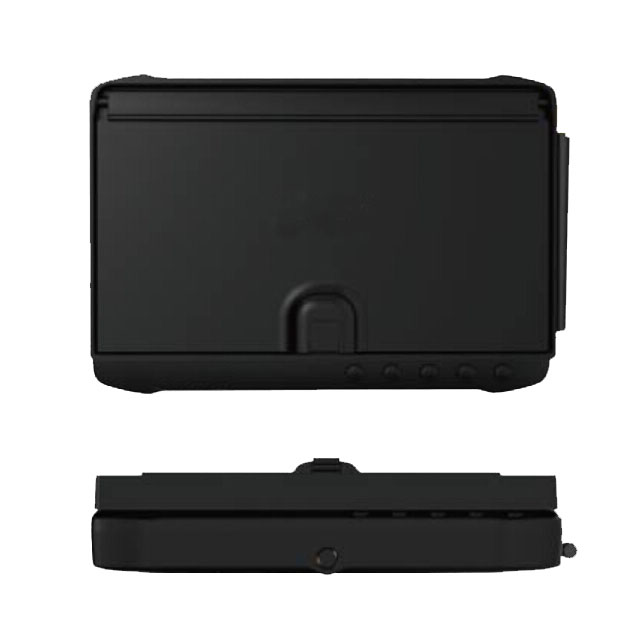

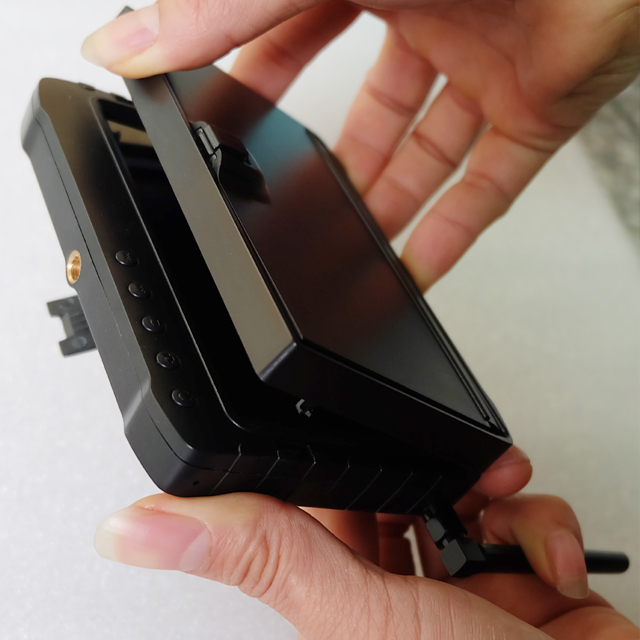

1.2GHz 5inch Mini Wireless Camera DVR Wireless FPV Monitor With Sunshade
TEL12GDV is our latest hot FPV monitor DVR . It improved on the basis of MINISPYTP43H, which comes with delicated outward and practical function. This new mini wireless fpv dvr monitor added sunshade and auto scan & lock channels function, now it is a wonderful outdoor wireless monitor for FPV, RC hobby ,quadcopter and drones
Feature:
* 5" HD snow Remote control style FPV monitor, no screen,track your plane anytime,don't need to worry about lossing trace for blue screen;
* 24chs 1.2Ghz wireless receiver ,one monitor for multiple plane with different frequency;
* Press one button , then it begin to scan and lock channels Automically, so easy.
* Support 32GB SD card storage wireless fpv dvr- RC plane black box:record all details and amazing video moment.
* Professinal sunshade +3200mAh battery, 10hous working time ,enjoy your outdoor pleasure flying time.
* Unique outward, simple but Practical, the best 5" portable FPV receiver monitor and dvr all in one.

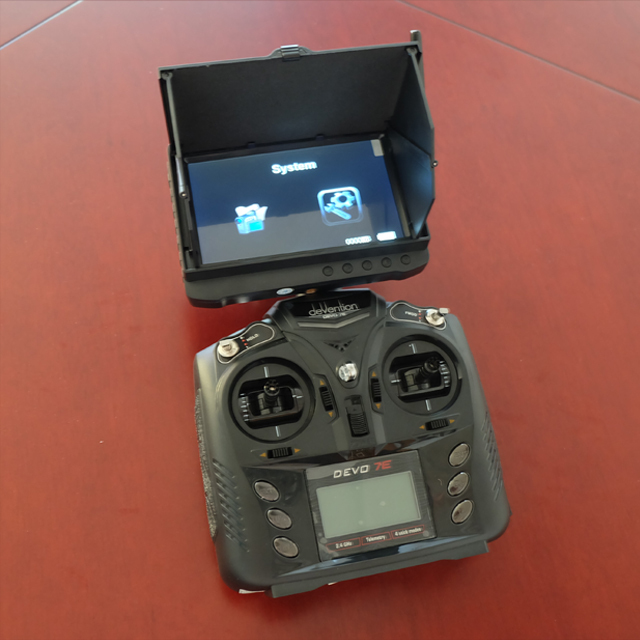

* Black fpv monitor or white one for optional, perfect match with dji,fatshark remote controller.
Specifications :
| Receiver | 1.2Ghz 24CHS -102dB |
A1:1080 MHz; A2:1120MHz; A3:1160MHz; A4:1200MHz A5:1240 MHz; A6: 1280MHz; A7:1320MHz; A8:1360MHz B1:1080 MHz; B2:1120MHz; B3:1160MHz; B4:1200MHz B5:1258 MHz; B6: 1280MHz; B7:1320MHz; B8:1360MHz C1:1080 MHz; C2:1120MHz; C3:1160MHz; C4:1200MHz C5:1010MHz; C6: 1040MHz; C7:1240MHz; C8:1280MHz |
| Antenna | RF-SMA 4 Blade | |
| Displayer | Screen size | 5 inch LCD screen |
| Resolution | 800 X 480 Pixel | |
| Contrast | 500:01:00 | |
| Brightness | 350 cd/M2 | |
| Recorder | Storage | TF card 1GB-32GB(optional) |
| Video compress | MPEG-AVI 30fps | |
| Language | Multiple | |
| AV IN | TV system | NTSC / PAL (for wired camera) |
| AV-OUT | Output voltage | 3.6-4.2 V |
| Audio | Speaker | 1W |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 | |
| Language | Multiple | |
| Power | Current | 340MA-680MA |
| AC adapter | DC 5V 2A | |
| Built-in battery | Li-battery 3200Mah | |
| Standby time | Wireless record | >=9.5 hours(off-screen); |
| Wired record | >=12 hours(off-screen); | |
| Sunshade | one button open | Patend LCD hood |
| Dimension | With sunshade | 131 x 90.5 x 28mm |
| Weight | with sunshade | 260G |
Package:
* 1 x DVR;
* 1 x usb cable;
* 1 x AC adapter;
* 1 x AV-OUT cable;
* 1 x AV-IN cable;
Package:
* DVR x 1pcs ;
* usb cable x 1pcs ;
* AC adapter x 1pcs ;
* AV-OUT cable x 1pcs ;
* AV-IN cable x 1pcs ;
