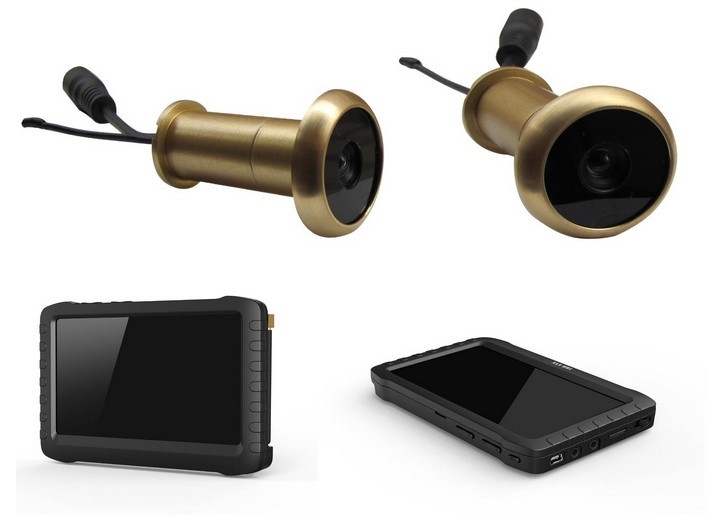

  1. 100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR

  2. 100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR

    No-interference frequency,100m range;90 degree VOA;0.008lux;5-inch screen;800X600pix;motion detect recording


    Condition:New
    Model:SPYTE850DHW



  3. Do You Want to monitor if any unauthorised people is outside your House?
    Do You Want To Know Who Come To Your House ?

    Get The Door Peephole Camera Kit Now!!

    *  No visible wires from the door's exterior, and exact same looking as original one,so the camera won't look suspicious;
    *  Pure brass materia, it's noble and durable;
    *  5.8G no-interference frequency, 100m wireless range;
    *  Records video in high and low light(0.008lux) situations;
    *  Wide-angle(90¡ã) lens makes it easy to capture footage of a corridor;
    *  5-inch large screen DVR playback Video instantly without connecting to computer;
    * Motion Detection Available : Record Only when there is movement detected outside the Door (Replaced CCTV 24 Hrs Monitoring & Protect Home From Robbery);
    *  No need any cable installation, just plug and play;
    *  Support SD Card(up to 32G) recording for any evidence needed.

    100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR

    100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR

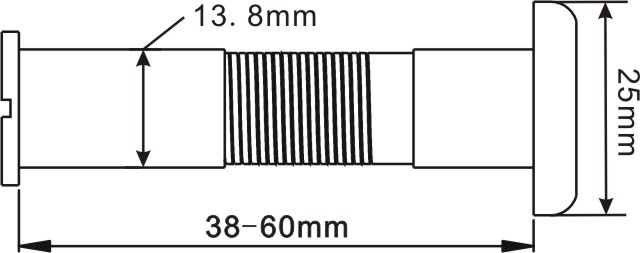

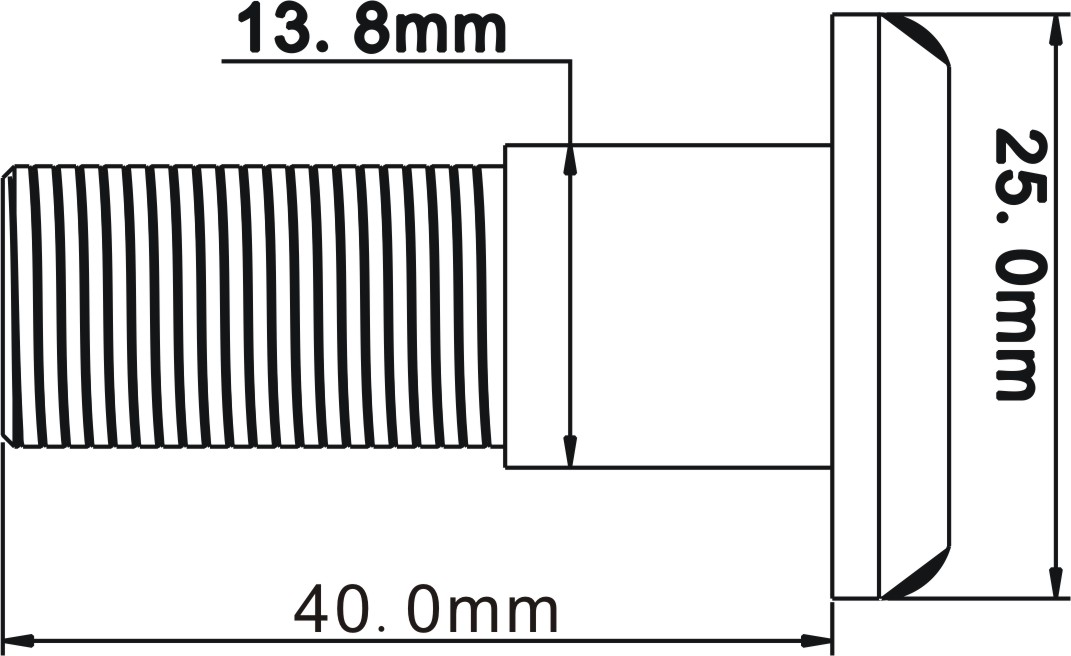

    Outline Size of camera:

    100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR
    100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR

    100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR
    100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR



    Specification:

    * Camera:

    Working frequency G1-within 5.8G CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz Working Channel: 1 of 24
    G2-Beyond 5.8G CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
    G3-Within 5.8G CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
    Antenna External antenna
    RF OUTPUT POWER 25mW
    TRANSMISSION RANGE 100 meters
    SENSOR DIMENSION NTSC£º720£¨H£©¡Á480£¨V£© PAL£º720£¨H£©¡Á576£¨V£©
    HORIZONTAL RESOLUTION 480TV Lines
    SENSITIVITY 0.008Lux/F1.2
    LENS & VIEW ANGLE 0.5mm F1.2 / 90 ¡ã
    PEEPHOLE SIZE(L x D) 38-60mm X 14mm
    WEIGHT£¨g£© 20g
    WORK CURRENT 230mA
    POWER REQUIREMENT DC 4V
    OPERATING TEMPERATURE - 20¡ãC ~ + 50¡ãC £¬Relative humidity 85©‡

    * 5-in HD Mini DVR:

    Items Value
    Wireless Receiving
    Wireless freq. (1 of 3 groups)
    Within 5.8G-A 8 channels CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
    Beyond 5.8G-B 8 channels CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
    Within 5.8G-C 8 channels CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
    Sensitivity -88dB
    Receiving distance 100 meters
    AV IN
    TV system NTSC / PAL
    Output voltage 3.6-4.2 V
    HD 5-inch LCD screen
    Active area 108mm(W) X 64.8mm(H)
    Resolution 800 X 480 Pixel
    Luminance for LCM 200 cd/©O
    Cape clear 5-inch LCD screen
    Active area 118mm(W) X 62.8mm(H)
    Resolution 480 X 272 Pixel
    Luminance for LCM£© 300cd/©O
    Video
    Resolution 720*576 / 640*480
    Video compress MPEG-AVI 30fps
    Play format MPEG-AVI
    Audio
    Frequency 20HZ-20KHz stereo
    Earphone Output Left: 20MW+ right 20mW [16O](suit to largest volume)
    Speaker 1W
    Format JPG/JPEG
    Storage External SD card TF card 1GB-32GB£¨optional£©
    32GB recording time 10-32 hours
    1GB photos 15625pcs
    Operating system PC Windows & Mac OS
    Port USB 2.0
    Language Multiple
    Power Voltage DC 5V
    Current(receiving mode) 660MA
    Current( recording mode) 680MA
    Current£¨recording with off-screen mode£© 340MA
    AC adapter DC 5V 2A
    Built-in battery Li-battery 3200Mah
    Standby time Wireless record ¡Ý9.5 hours(off-screen); ¡Ý5hours£¨on-screen£©
    Wired record ¡Ý12 hours(off-screen); ¡Ý6hours£¨on-screen£© *LED camera not included.
    Size (L x W x H) 131mm x 86mm x 18mm
    Weight(g) 205G



    Package:

    1*Wireless Door Peephole Camera;
    1*AC Adapter
    1*DVR
    1*cable
    1*usb cable
    1*AV input cable
    1*AV output cable
    1*manual
