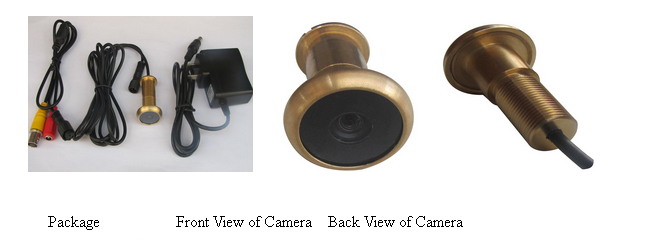

This Door Peephole uses the high sensitive imaging device and pure brass material, which brings noble and durable quality and superior imaging capabilities. Extremely low illumination, broad view angleŁ¬ultra long working life and easy installation. It's a good helper for home monitoring and burglar.
Main Features:
1. Pure brass material, noble and durable;
2. Same size with original optical peephole. Keep original appearance after installation;
3. 0.008lux extremely low illumination, which makes it can clearly see the visitor even under dim light;
4. 90 degree broad view angle;

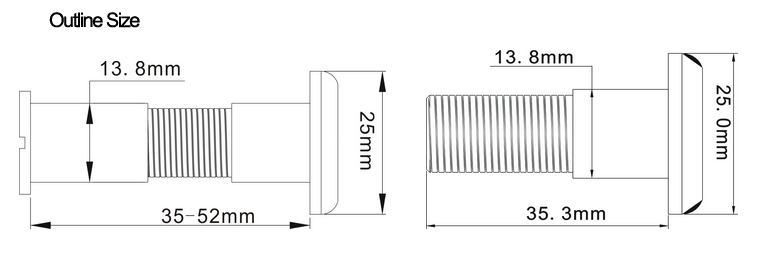

5. 13.8mm super small diameter, which is suitable to all doors with peephole. No need to drill hole, just install directly;
6. Low power consumption to assure the long time working life;
7. Directly connect BNC cable to TV/monitor/DVR, it's very quick & easy.
Installation:
1. Use one coin or other tool to uninstall the original optical viewer;

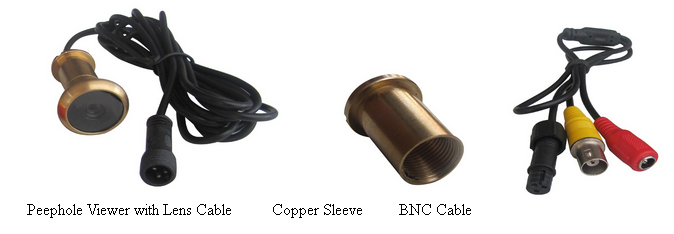

2. Unscrew copper sleeve off and pass lens cable through peephole from outside to inside of door. Set lens cable into sleeve; screw sleeve into peephole inside of door. (Pay attention to horizontal direction of lens);
3. Connect lens cable with BNC cable and fix it well. Then connect BNC cable with TV/monitor/DVR to start monitoring.
Specification:
| Pick Up Element : | Single chip 1/4 CMOS | |
| Number of pixel : | NTSC:720(H) x 480(V) | PAL : 720(H) x 576(V) |
| Sensor dimension: | 3.584mm(H) x 2.688(V) | |
| Horizontal Resolution: | Approximately 480 TVL | |
| Sensitivity: | 0.008Lux/F1.2 | |
| Lens & View angle | F1.2 / 90deg | |
| S/N Ratio: | 48DB | |
| Auto Gain Control : | Out | |
| White Balance: | Out | |
| Back Light: | Out | |
| Video Out: | 13G | |
| Work Current: | 1.0V p-p / 75ohm | |
| Weight: | 35G | |
| Work Current : | DC 12V : 35mA | |
| Power Requirement : | DC 3.6-24V | |
| Operating: | -10 to + 50 Degrees Celsius ,less than 90% RH | |
| Connection: | PIN1->Red DC PIN2->Black GND PIN3->Yellow VIDEO OUT | |
