Your Position:Home >> Mini Spy Camera > > 2.4G Wireless Ultra-low lux Pen Camera + 2.4GHz HD wireless mini DVR 5inch TFT support 32G SD card

Related products

  1. 2.4G Wireless Ultra-low lux Pen Camera + 2.4GHz HD wireless mini DVR 5inch TFT support 32G SD card

  2. 2.4G Wireless Ultra-low lux Pen Camera + 2.4GHz HD wireless mini DVR 5inch TFT support 32G SD card


    Condition:New
    Model:WD24P_DVR
    Warranty: 1 year


  3. THE 2.4GHz Wireless PEN :
    Real time video , Min. 100m transmission distance without blocks,786X576 pix 520TVL;Mini Wireless camera


    2.4GHz Wireless Pen Camera Selling points:

    * Wireless transmission provides real time video on DVR to view effect as you record;
    * Excellent night vision(Minimum Illumination 0.008Lux);
    * High quality image (786 x 576pix);
    * Super long continuous working time(1.3 hours);
    * Min. 100m transmission distance without blocks;
    * Professional design for business men and students.

    Application:
    You can hang it on pocket, place it on a desk, and even hold it in hand to write;It starts transmitting! It's ideal for businessmen, law enforcement agencies and journalists, professional to fulfill their undercover assignments: such as evidence collection, hidden investigations, surveillance, etc. It's also great as a toy for hobby enthusiasts, as for body worn solutions.

    2.4GHz Wireless Pen Camera Specification:


    Item Value
    Transmission Frequency 2.4G 2414Mhz(CH1); 2468MHz(CH4)
    2.3G 2370Mhz(CH1); 2510MHz(CH4)
    Audio subcarrier frequency 6.0Mhz
    Antenna
    		 Built-in 2.4G antenna
    Transmitting Range
    		 300 feet in line of sight
    CMOS Total Pixels 786 x 576(PAL) 656 x 492(NTSC)
    Horizontal resolution
    		 520TV line
    Minimum Illumination 0.008Lux / F1.5
    Built-in mic.
    		 55dB high sensitivity
    View Angle 55
    camera lens focus
    Beyond 3m vicinity:10mm
    Transmission Power 10mW
    Battery Performance Li-ion Battery 160mAH
    Working Time 1.3 hours
    Charge time
    1.5 hour
    Operating voltage
    DC 5V
    Operating current
    105MA
    Dimensions( LX D)
    144X14.5 mm
    Weight 30g

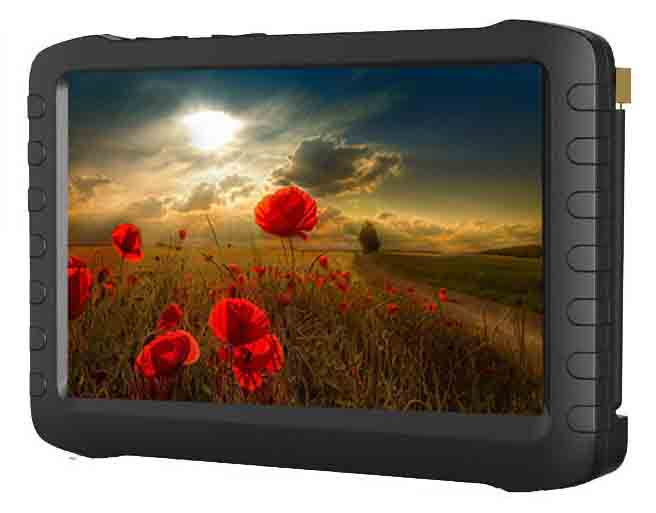

    HD 2.4GHz wireless mini DVR 5inch TFT support 32G SD card:

    Parameter:

    *  5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design;
    *  Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
    *  Supports storage up to 32G TF card, which records up to 32 hours;
    *  Supports  2.4GHz & 5.8GHz  wireless frequency;
    *  8 channels auto/manual switch;
    *  Folding hidden external antenna assures excellent wireless receiving;
    *  Supports AV IN function: receiving signal from wired cameras;
    *  Photo function: it can take, review & store pictures;
    *  Supports intelligent motion detect video recording;
    *  Overwrite: It supports loop recording, which can automatically overwrite   when storage is full;
    *  Seamless continuous record:No intermittent recording, it will not miss any  detail and wonderfulness;
    *  Support power-saving mode: automatic shutdown, automatic off-screen;
    *   Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
    *  It's of high compatibility, which supports almost all computer operating system, including MAC;
    *   Supports multi-language.

    HD 2.4GHz wireless mini 5inch DVR Specifications:

    Items Value
    Wireless Receiving 2.4GHz ¨C8 channels CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
    ( Choose 1 group of frequency from 2.4G/within 5.8G/beyond 5.8G) CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
    Within 5.8G¡ª8 channels CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
    ¡¡ CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
    ¡¡ Beyond 5.8G¡ª8 channels CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
    ¡¡ CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
    ¡¡ Sensitivity -92dB
    ¡¡ Receiving distance 100 meters
    AV IN TV system NTSC / PAL
    Output voltage 3.6-4.2 V
    HD 5-inch LCD screen Active area 108mm(W) X 64.8mm(H)
    Resolution 800 X 480 Pixel
    Luminance for LCM 200 cd/©O
    Cape clear 5-inch LCD screen Active area 118mm(W) X 62.8mm(H)
    Resolution 480 X 272 Pixel
    Luminance for LCM 300cd/©O
    Video Resolution 720*576 / 640*480
    Video compress MPEG-AVI 30fps
    Play format MPEG-AVI
    Audio Frequency 20HZ-20KHz stereo
    Earphone Output Left: 20MW+ right 20mW [16O](suit to largest volume)
    Speaker 1W
    Photo Format JPG/JPEG
    Storage External SD card TF card 1GB-32GB(optional)
    32GB recording time 10-32 hours
    1GB photos 15625pcs
    Operating system PC Windows & Mac OS
    Port USB 2.0
    Language Multiple
    Power Voltage DC 5V
    Current(receiving mode) 660MA
    Current( recording mode) 680MA
    Current(recording with off-screen mode) 340MA
    AC adapter DC 5V 2A
    Built-in battery Li-battery 3200mAh
    Standby time Wireless record ¡Ý9.5 hours(off-screen); ¡Ý5hours(on-screen)
    Wired record ¡Ý12 hous(off-screen); ¡Ý6hours(on-screen) *LED camera not included.
    Size (L x W x H) 131mm x 86mm x 18mm
    Weight(g) 205g

    The package:

       1 * Pen Camera
       1 * Wireless dvr
       1 * User Manual
       1 * USB Cable
       1 * Power Charger
       1 * AV Cable
