    2.4GHz Wireless Ultra-low lux Pen Camera and Wireless USB DVR


    Condition:New
    Model:WP24H_DVR
    Warranty: 1 year

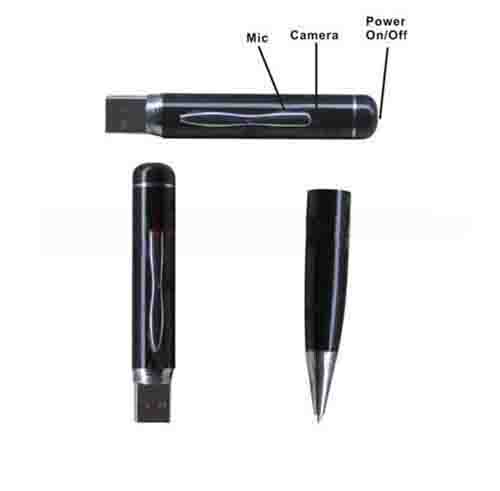

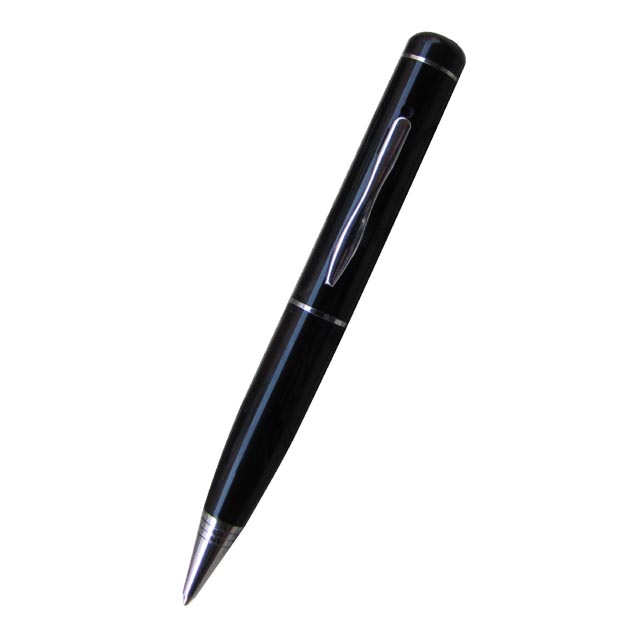

  3. THE 2.4GHz Wireless PEN :
    Real time video , Min. 100m transmission distance without blocks,786X576 pix 520TVL;Mini Wireless camera


    2.4GHz Wireless Pen Camera Selling points:

    * Wireless transmission provides real time video on DVR to view effect as you record;
    * Excellent night vision(Minimum Illumination 0.008Lux);
    * High quality image (786 x 576pix);
    * Super long continuous working time(1.3 hours);
    * Min. 100m transmission distance without blocks;
    * Professional design for business men and students.

    Application:
    You can hang it on pocket, place it on a desk, and even hold it in hand to write;It starts transmitting! It's ideal for businessmen, law enforcement agencies and journalists, professional to fulfill their undercover assignments: such as evidence collection, hidden investigations, surveillance, etc. It's also great as a toy for hobby enthusiasts, as for body worn solutions.

    2.4GHz Wireless Pen Camera Specification:


    Item Value
    Transmission Frequency 2.4G 2414Mhz(CH1); 2468MHz(CH4)
    2.3G 2370Mhz(CH1); 2510MHz(CH4)
    Audio subcarrier frequency 6.0Mhz
    Antenna
    Built-in 2.4G antenna
    Transmitting Range
    300 feet in line of sight
    CMOS Total Pixels 786 x 576(PAL) 656 x 492(NTSC)
    Horizontal resolution
    520TV line
    Minimum Illumination 0.008Lux / F1.5
    Built-in mic.
    55dB high sensitivity
    View Angle 55
    camera lens focus
    Beyond 3m vicinity:10mm
    Transmission Power 10mW
    Battery Performance Li-ion Battery 160mAH
    Working Time 1.3 hours
    Charge time
    1.5 hour
    Operating voltage
    DC 5V
    Operating current
    105MA
    Dimensions( LX D)
    144X14.5 mm
    Weight 30g

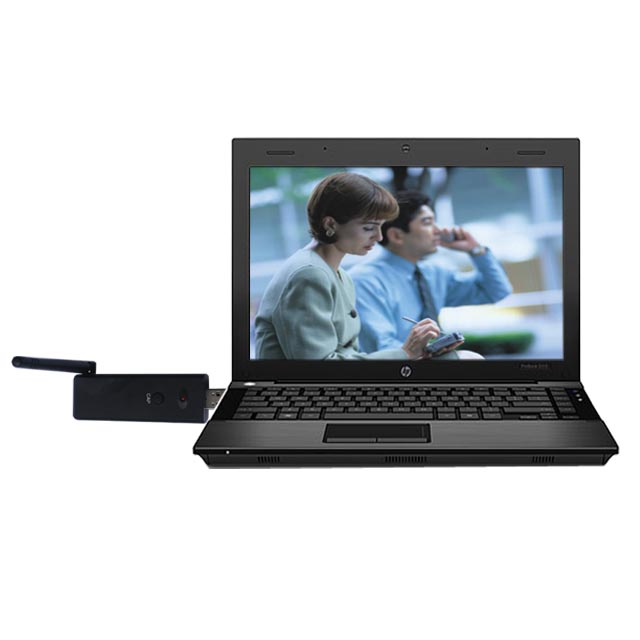

    THE Wireless USB DVR small size USB receiver:

    Wireless USB DVR Features:
    * Wireless receive and record A/V signal from wireless cameras (up to 4 cameras, auto-scan)
    * USB 2.0 output to PC, transmission rate up to 480Mpit/s
    * Motion detection: If any intruder, it alarms with sound, and at same time  capture picture saving in hard disk or send e-mail to long-range PC
    * High resolution image capture (1440X1152pix)
    * High speed real time video record, 720 X576 pix@ 30pfs
    * Support MSN Messenger & Skype for long-range live video, like a web camera
    * Sharp and nature image with true color.
    * 4 channels available to avoid possible interference
    * Record file format AVI and play with Windows Media Player
    * Supports Windows 2000/XP/Vista
    * Small size (100X28X15mm,41g) and beautiful appearance

    Wireless USB DVR small size USB receiver DVR image capture live video motion detection

    Wireless USB DVR Functions:
    1. Send e-mails attachment with image.
    2. Save image on Hard Disk.
    3. Sound alarm.
    4. Video signal filter, for filtrate Active and Invalid channel.
    5. Signal lost alarm.
    6. Motion Detection.
    7. Adjustable sensitivity.
    8. Automatically lock, while not any operate.
    9. Schedule Monitoring sessions, for timer snap.
    10. Record video/audio (with usb2.0 audio interface), snap shot.
    11. Automatic Space Management. Stop recorder or capture still automatically on disk full.
    12. Support 4 Channel video inputting on one computer.
    13. Support on Screen Display. Display date and time, or channel description on video.
    14. Supports manual open/close Invalid channel, or add/delete channel description.
    15. Supports login and logout, by User Name and Password.
    16. Supports running background stealthy.
    17. One video/audio input
    18. Receiving Frequency: channel 1: 2.414GHZ channel 2: 2.432GHZ channel 3: 2.450GHZ channel 4: 2.468GHZ

    Wireless USB DVR Specification:
    *  Power Supply:  Provided by USB Port
    *  Consumption Current (Max.): 180mA
    *  Receiving Frequency: ISM 2,400MHz~2,483MHz
    *  Input VSWR: 2:1
    *  Demodulation Type: FM
    *  Intermediate Frequency: 480MHz
    *  Frequency Stabilization: +/- 100 ppm
    *  Local Leakage at RF Input Terminal: <=-55 dBm
    *  Receiving Sensitivity: <= -85 dBm
    *  Video Output Signal Impedance: 75 ohm
    *  Video Output Signal Level: 1.0 V +/- 0.15 Vpp
    *  Video Output Signal Polarity: Negative
    *  Video S/N Ratio: 38dB
    *  Audio Output Signal Impedance: 600 ohm
    *  Audio Output Signal Level: 1.25 V +/- 0.25 Vpp / 1 kHz
    *  Audio Output Frequency Range: 250 Hz ~ 10 kHz
    *  Left Subcarrier Frequency: 6.0 MHz
    *  Unobstructed Effective Range: 100 m (Min.)
    *  Dimensions(WxLxH): 10X2.8X1.5cm (Excluding Antenna)
    *  Weight : 41G

    The package:

    1 * wireless pen
    1 * USB receiver
    1 *  Antenna
    1 * DC/AV cable
