Your Position:Home >> Mini Spy Camera > > 5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield

Related products

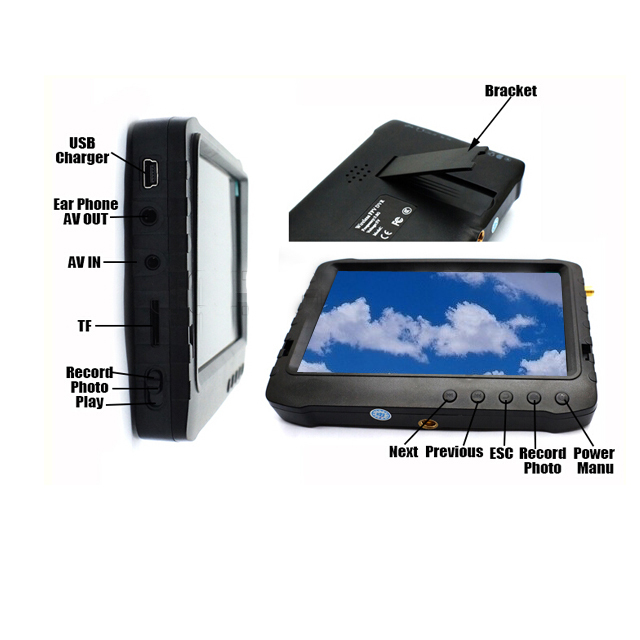

  1. 5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield

  2. 5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield


    Condition:New
    Model:TEL58GDV
    Warranty 1 Year !



  3. 5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield

    Feature:

    * 5" HD snow Remote control style FPV monitor, no screen,track your plane anytime,don't need to worry about lossing trace for blue screen;
    * 32CHS 5.8GHz wireless receiver ,one monitor for multiple plane with different frequency;
    * Press one button , then it begin to scan and lock channels Automically, so easy.
    * Support 32GB SD card storage wireless fpv dvr- RC plane black box:record all details and amazing video moment.
    * Professinal sunshade +3200mAh battery, 10hous working time ,enjoy your outdoor pleasure flying time.
    * Unique outward, simple but Practical, the best 5" portable FPV receiver monitor and dvr all in one.

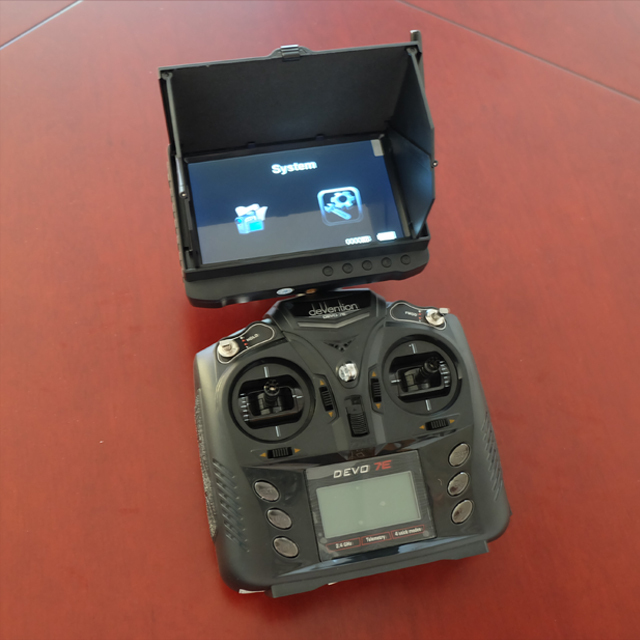

    * Black fpv monitor or white one for optional, perfect match with dji,fatshark remote controller.

    5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield
    5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield
    5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield

    Specifications :

    Receiver 5.8Ghz 32CHS
    -92dB
    A1: 5.740GHz; A2: 5.760GHz; A3: 5.780GHz; A4: 5.800GHz
    A5: 5.820GHz; A6: 5.840GHz; A7: 5.860GHz; A8: SPI
    B1: 5.725GHz; B2: 5.745GHz; B3: 5.765GHz; B4: 5.785GHz
    B5: 5.805GHz; B6: 5.825GHz; B7: 5.845GHz; B8: 5.865GHz
    C1: 5.733GHz; C2: 5.752GHz; C3: 5.771GHz; C4: 5.790GHz
    C5: 5.809GHz; C6: 5.828GHz; C7: 5.847GHz; C8: 5.866GHz
    D1: 5.705GHz; D2: 5.685GHz; D3: 5.665GHz; D4: 5.645GHz
    D5: 5.885GHz; D6: 5.905GHz; D7: 5.925GHz; D8: 5.945GHz
    Antenna RF-SMA 4 Blade
    Displayer Screen size 5 inch LCD screen
    Resolution 800 X 480 Pixel
    Contrast 500:01:00
    Brightness 350 cd/M2
    Recorder Storage TF card 1GB-32GB(optional)
    Video compress MPEG-AVI 30fps
    Language Multiple
    AV IN TV system NTSC / PAL (for wired camera)
    AV-OUT Output voltage 3.6-4.2 V
    Audio Frequency 20HZ-20KHz stereo
    Earphone Output Left:20MW + right 20mW[16O](suit to largest volume)
    Speaker 1W
    HD 5-inch LCD Screen Active area 108mm(W) x 64.8mm(H)
    Resolution 800 x 480 Pixel
    Luminance for LCM 200cd/M2
    Video Resolution 720*576/720*480
    Video compress MPEG-AVI 30fps
    Play format MPEG-AVI
    Photo Format JPG/JPEG
    Storage External SD card TF card 1GB-32GB (optional)
    32GB recording time 10-32 hours
    1GB photos 15625pcs
    Operating system PC Windows & Mac OS
    Port USB 2.0
    Language Multiple
    Power Votage DC 5V
    Current(receiving mode) 600MA
    Current(recording mode) 680MA
    Current( recording with off-screen mode) 340MA
    AC adapter DC 5V 2A
    Built-in battery Li-battery 3200Mah
    Standby time Wireless record ¡Ý9.5 hours(off-screen);
    Wired record ¡Ý12 hours(off-screen);

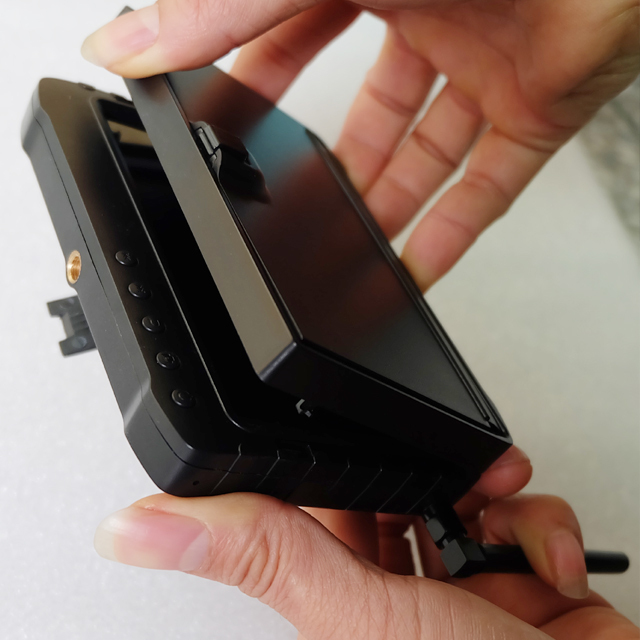

    Sunshade one button open Patend LCD hood
    Size(LxWxH) Without sunshade 131 x 90.5 x 18mm
    With sunshade 131 x 90.5 x 28mm
    Weight Without sunshade 215G
    with sunshade 260G



    Package:

    * DVR x 1pcs ;
    * usb cable x 1pcs ;
    * AC adapter x 1pcs ;
    * AV-OUT cable x 1pcs ;
    * AV-IN cable x 1pcs ;
