Your Position:Home >> Mini Spy Camera > > 520TVL Mini CCTV Camera 90degree 0.008Lux View Angle Audio
Your Position:Home >> Mini Spy Camera > > 520TVL Mini CCTV Camera 90degree 0.008Lux View Angle Audio
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Features :

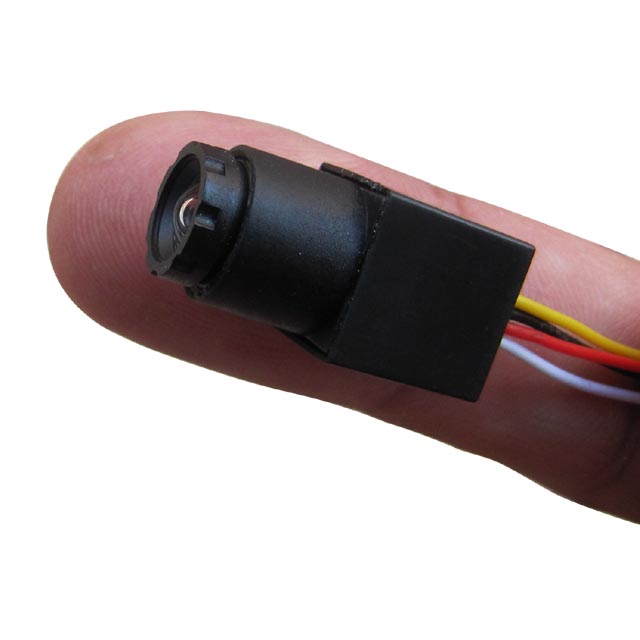

It's an ultra small high definition housed CCTV camera with excellent night vision.

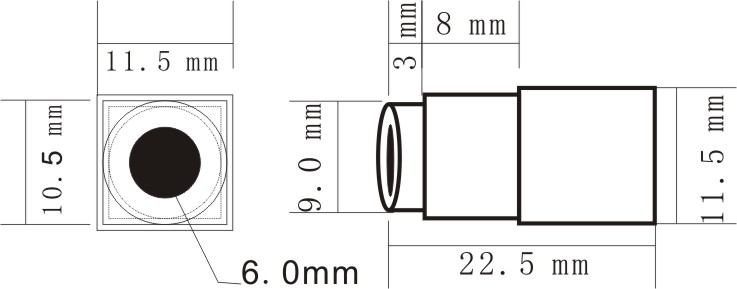

Size is 10.5X11.5X22.5mm only, Weight is 4g! Ready housed camera is very convenient & easy
to install and conceal.Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.90degree wide view angle provides broad surveillance field.
Full TV system. Applicable worldwide.
Ready AV/BNC cable and power supply cable. Just plug & play!
Specification:
| PICK UP ELEMENT | Single chip 1/3 CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC:656(H)¡Á492(V) | PAL:786(H)¡Á576(V) |
| IMAGE SIGNAL PROCESS | Digital Signal Processing System | |
| SENSOR DIMENSION | 4.75mm(H)¡Á3.55mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
| SCANNING SYSTEM | 2:1 Interlace | |
| SENSITIVITY | 0.008Lux/F1.2 | |
| LENS & VIEW ANGLE | 0.5mm F2.0 /90 ¡ã | |
| S/N RATIO | 52dB | |
| ELECTRONIC SHUTTER | OUT (1/60 S TO 1/100000 S) | OUT (1/50 S TO 1/100000S) |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| AUDIO OUT | 1.0V p-p/1Kohm | |
| SIZE (L x W x H) | 10.5x11.5x22.5mm | |
| WEIGHT | 4g | |
| WORK CURRENT | 70mA | |
| POWER REQUIREMENT | DC 3.6V-24V | |
| OPERATING TEMPERATURE | - 10¡ã C ~ +50¡ãC £¬less than 90% RH | |
| Connection | PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT PIN 4¡ªWhite AUDIO OUT | |
Package:
1 * Mini camera ;

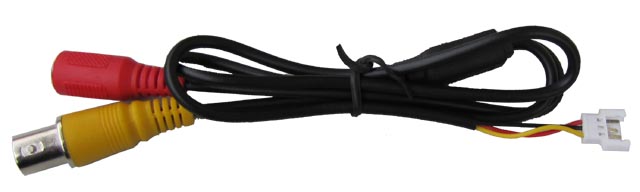

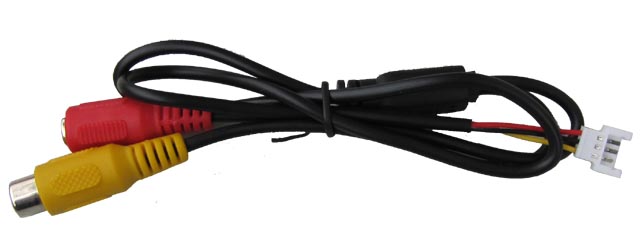

1 * RCA/BNC cable;
1 * AC adapter
