  1. 520TVL Mini CCTV Spy Camera Color Video With two lens

  2. 520TVL Mini CCTV Spy Camera Color Video With two lens

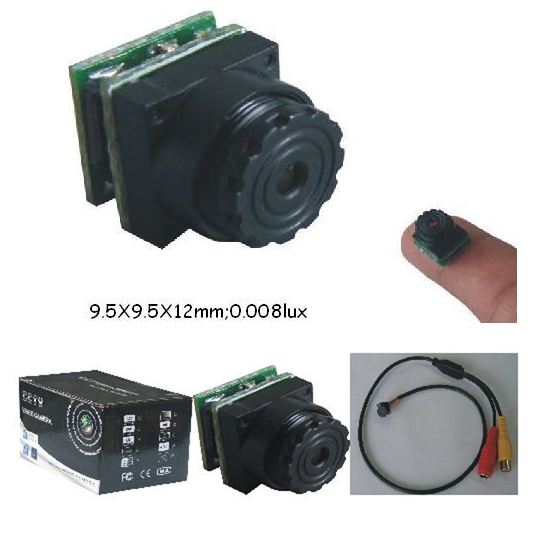

    520TVL Mini CCTV Spy Camera Color Video With two lens (9.5*9.5*12mm;0.008lux)


    Condition:New
    Model : MSPY520TWOL




  3. It's a ultra small  high definition CCTV camera with excellent night vision.
    Size is 9.5X9.5X12mm only, Weight is 1g! Very easy to install and conceal.
    Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
    Full TV system. Applicable worldwide.

    Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
    520TVL Mini CCTV Spy Camera Color Video With two lens

    Features & functions:

    1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
    2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
    3) To view on your computer or laptop you will need a DVR card or USB;
    4) A standalone system that records is a standalone DVR
      .

    Ready AV/BNC cable and power supply cable. Just plug & play!

    Specification:

    * PICK UP ELEMENT:     Single chip 1/3 CMOS
    * SYSTEM:                       NTSC & PAL
    * NUMBER OF PIXEL NTSC£º656£¨H£©¡Á492£¨V£©;PAL£º786£¨H£©¡Á576£¨V£©
    * IMAGE SIGNAL PROCESS:  Digital Signal Processing System
    * SENSOR DIMENSION:  4.75mm£¨H£©¡Á3.55mm£¨V£©
    * HORIZONTAL RESOLUTION:  520TV Lines
    * SCANNING SYSTEM: 2£º1 Interlace
    * SENSITIVITY: 0.008Lux/F1.2
    * LENS & VIEW ANGLE: 0.5mm F2.0 / 55 ¡ã
    * S/N RATIO: 48dB
    * VIDEO OUT: 1.0V p-p/75ohm
    * SIZE  (L x W x H): 9.5mm x 9.5mmx 12mm
    * WEIGHT: 1g
    * WORK CURRENT: 75mA
    * POWER REQUIREMENT DC: 3.3V-6V
    * OPERATING TEMPERATURE: - 10¡ã C ~ +50¡ãC £¬less than  90% RH
    * Connection: PIN1=> Red DC5V PIN2=> Black GND  PIN3=> Yellow VIDEO OUT

    The package:

    1*Mini camera ;
    1* AC Adapter
    1* Extra lens
