  1. 90deg 100M 5.8G Low illumination Wireless Mini Camera

  2. 90deg 100M 5.8G Low illumination Wireless Mini Camera

    5.8G no-inteference frequency,100m range;90 view angle;0.008lux;8g


    Condition:New
    Model:SPY960ET



  3. SPY960ET adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities. Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(90deg), small size, wireless transmission, tiny weight( 8g), continuous working(AV power supply), and easy installation . It is a good helper for home monitoring and burglar.

    Features:

    1. No-interference 5.8G frequency, up to 24 channels for choice;
    2. Tiny size (smaller than finger);
    3. Tiny weight (only 8g);
    4. 0.008LUX super low illumination, which can see clearly under dim light;
    5. 90deg .
    6. Low power consumption assures the long time working life;
    7. 25mW transmitting power, which leads 100 meters wireless transmission range.

     use method:

    Connect it with power supply, it starts to work.
    At the same time, power on wireless receiver and set it in the same channel with camera.
    Then it starts to receive/record real time audio & video.

    Note: This camera has one working channel. Please select the model with your requested frequency;

    90deg 100M 5.8G Low illumination Wireless Mini Camera

    SPECIFICATION:


    Working frequency G1-within 5.8G CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz Working Channel: 1 of 24
    G2-Beyond 5.8G CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
    G3-Within 5.8G CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
    Antenna External antenna
    RF OUTPUT POWER 25mW
    TRANSMISSION RANGE 100 meters
    SENSOR DIMENSION NTSC:720(H) x 480(V) PAL:720(H) x 576(V)
    HORIZONTAL RESOLUTION 480TV Lines
    SENSITIVITY 0.008Lux/F1.2
    LENS & VIEW ANGLE 0.5mm F1.2 / 90 ¡ã

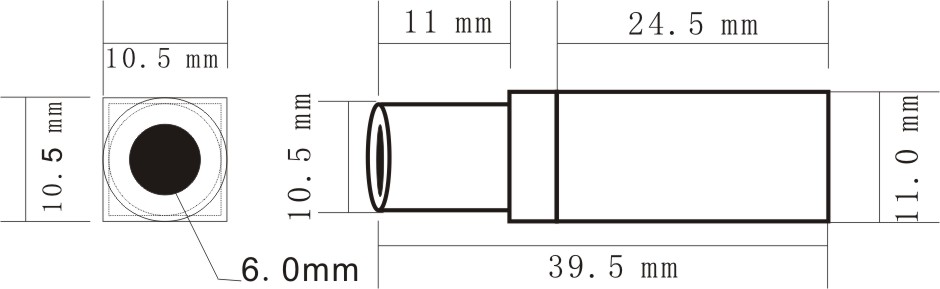

    SIZE(L x W x H) 39.5mm x 10.5mm x 10.5mm
    WEIGHT(g) 8g
    WORK CURRENT 230mA
    POWER REQUIREMENT DC 4V
    OPERATING TEMPERATURE - 20¡ãC ~ + 50¡ãC ,Relative humidity 85%
