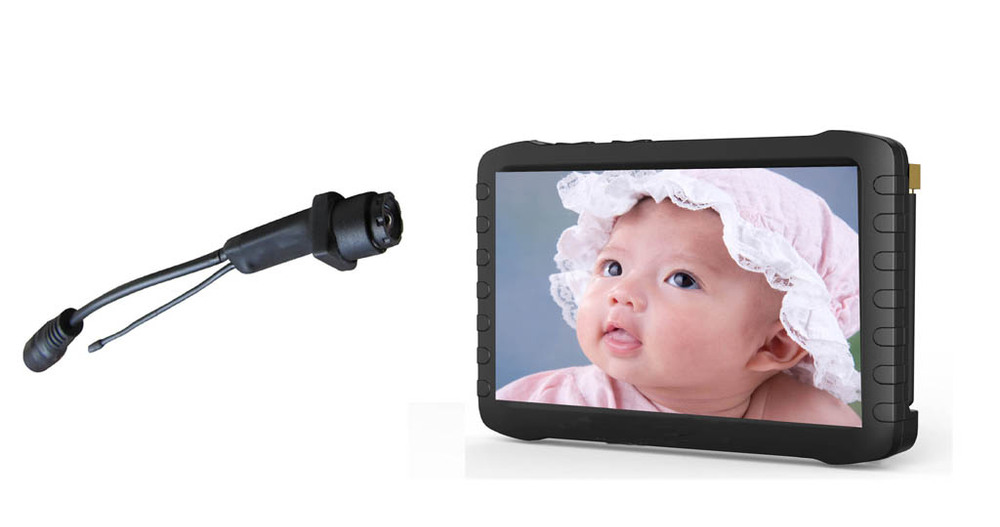

The MINISTE806A wireless mini camera and dvr kit includes a very tiny wireless camera and a 5-inch LCD DVR, which adopt no-interference 5.8G frequency.It transmits 100 meters range. The size of camera is smaller than finger, only 8G!!!! It is suitable to install it into narrow and hard-to-reach room. Users can view the instant video on this 5 inch HD screen. They also can record videos and take pictures.Motion detect & loop recording are available for more convenience use.It is a good helper for safe & security.
Features:
* No-interference 5.8G frequency, no need to worry the interference from general-used 2.4G frequency;
* Camera has up to 24 channels for choice;

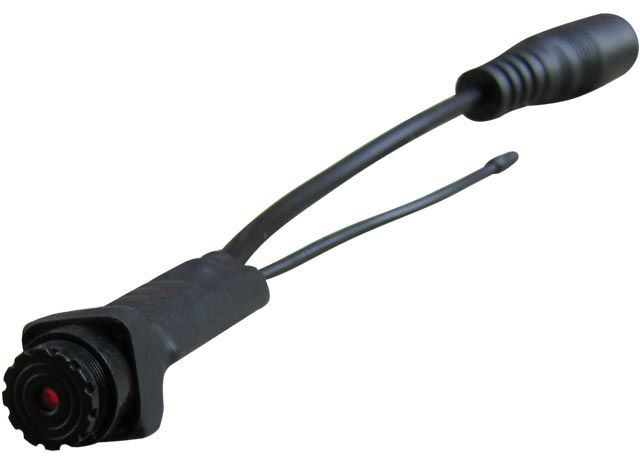

* Tiny size camera (smaller than finger), and tiny weight (only 8g);
* 0.008LUX super low illumination, which can see clearly under dim light;
* 90¡ã and 50¡ã view angle for your choice;
* Low power consumption assures the long time working life;
* 25mW transmitting power, which leads 100 meters wireless transmission range;
* High resolution 5-inch large screen DVR playback clear video instantly without connecting to computer;
* Motion Detection Available : Record only when there is movement detected(Replaced CCTV 24 Hrs Monitoring );
* No need any cable installation, just plug and play;
* Support SD Card(up to 32G) recording for any evidence needed.
How to use:
1. Connect camera with power supply, it starts to work. At the same time, power on DVR and set it in the same channel with camera.
2. Then real time audio & video starts to tranmit from camera to DVR for view or recording or taking pictures.
It is very easy to use , just connect the camera to AV power supply, it starts to continuous working. Just plug & play!
Note: This camera has one working channel. Please select the model with your requested frequency;
Wireless Mini Camera SPECIFICATION:
| Working frequency | G1-within 5.8G | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz | Working Channel: 1 of 24 | ||
| G2-Beyond 5.8G | CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz | ||||
| G3-Within 5.8G | CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz | ||||
| Antenna | External antenna | ||||
| RF OUTPUT POWER | 25mW | ||||
| TRANSMISSION RANGE | 100 meters | ||||
| SENSOR DIMENSION | NTSC:720(H) x 480(V) | PAL:720(H) x 576(V) | |||
| HORIZONTAL RESOLUTION | 480TV Lines | ||||
| SENSITIVITY | 0.008Lux/F1.2 | ||||
| LENS & VIEW ANGLE | 0.5mm F1.2 / 90 ¡ã | ||||

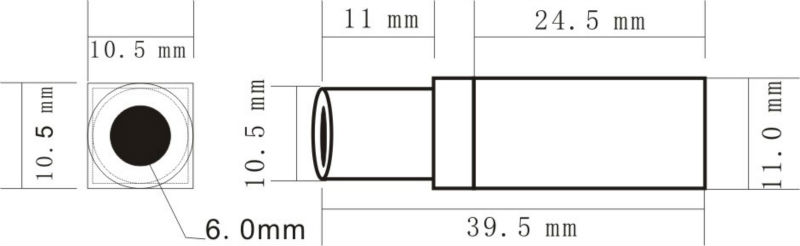

| SIZE(L x W x H) | 39.5mm x 10.5mm x 10.5mm | ||||
| WEIGHT(g) | 8g | ||||
| WORK CURRENT | 230mA | ||||
| POWER REQUIREMENT | DC 4V | ||||
| OPERATING TEMPERATURE | - 20¡ãC ~ + 50¡ãC ,Relative humidity 85% | ||||

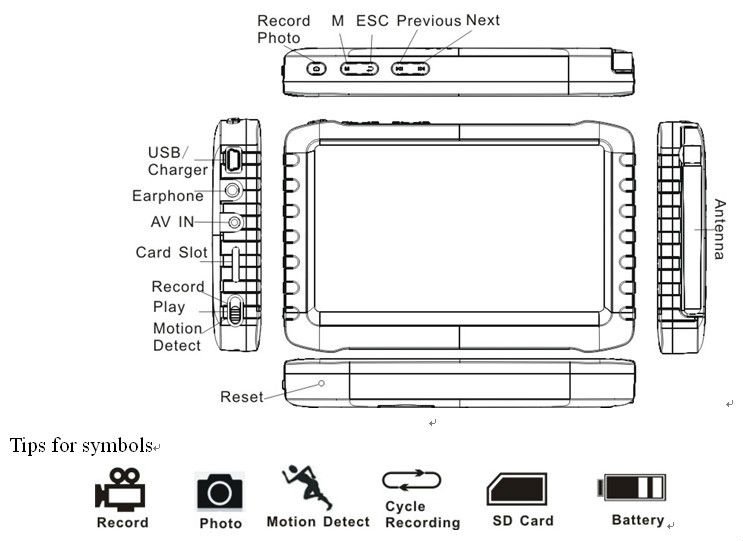

Wireless DVR Feature:
* Mini size and portable recorder with fashionable & new design;
* 5-inch super large HD screen (800X480pix), which provides clear and smooth image;
* Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
* Supports storage up to 32G TF card, which records up to 32 hours;
* 8 channels auto/manual switch;
* Folding hidden external antenna assures excellent wireless receiving;
* Supports AV IN function: receiving signal from wired cameras;
* Photo function: it can take, review & store pictures;
* Supports intelligent motion detect video recording;
* Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
* Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
* Support power-saving mode: automatic shutdown, automatic off-screen;
* Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
* It¡¯s of high compatibility, which supports almost all computer operating system, including MAC;
* Supports multi-language.
Wireless DVR Receiver Specification:
| Items | Value | |
| Wireless Receiving | Within 5.8G-A (8 channels) | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. |
| CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz | ||
| Within 5.8G-B (8 channels) | CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. | |
| CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz | ||
| Beyond 5.8G-C (8 channels) | CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. | |
| CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz | ||
| Sensitivity | -92dB | |
| Receiving distance | 100 meters | |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V | |
| HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
| Resolution | 800 X 480 Pixel | |
| Luminance for LCM | 200 cd/M2 | |
| Cape clear 5-inch LCD screen | Active area | 118mm(W) X 62.8mm(H) |
| Resolution | 480 X 272 Pixel | |
| Luminance for LCM | 300cd/M2 | |
| Video | Resolution | 720*576 / 640*480 |
| Video compress | MPEG-AVI 30fps | |
| Play format | MPEG-AVI | |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) | |
| Speaker | 1W | |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB(optional) |
| 32GB recording time | 10-32 hours | |
| 1GB photos | 15625pcs | |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 | |
| Language | Multiple | |
| Power | Voltage | DC 5V |
| Current(receiving mode) | 660MA | |
| Current( recording mode) | 680MA | |
| Current(recording with off-screen mode) | 340MA | |
| AC adapter | DC 5V 2A | |
| Built-in battery | Li-battery 3200mAh | |
| Standby time | Wireless record | >=9.5 hours(off-screen);>=5hours(on-screen) |
| Wired record | >=12 hous(off-screen);>=6hours(on-screen) *LED camera not included. | |
| Size (L x W x H) | 131mm x 86mm x 18mm | |
| Weight(g) | 205g | |
Package :
* DVR * 1pcs
* Camera * 1pcs
* User Manual * 1pcs
* Stereo earphone * 1pcs
* USB Cable * 1pcs
* AC Adapter * 1pcs
* Back holder for installation * 1pcs
