  1. Day/Night 520TVL Mini CCTV Camera with 8 LEDs F1.2 and 90 deg view angle

  2. Day/Night 520TVL Mini CCTV Camera with 8 LEDs F1.2 and 90 deg view angle

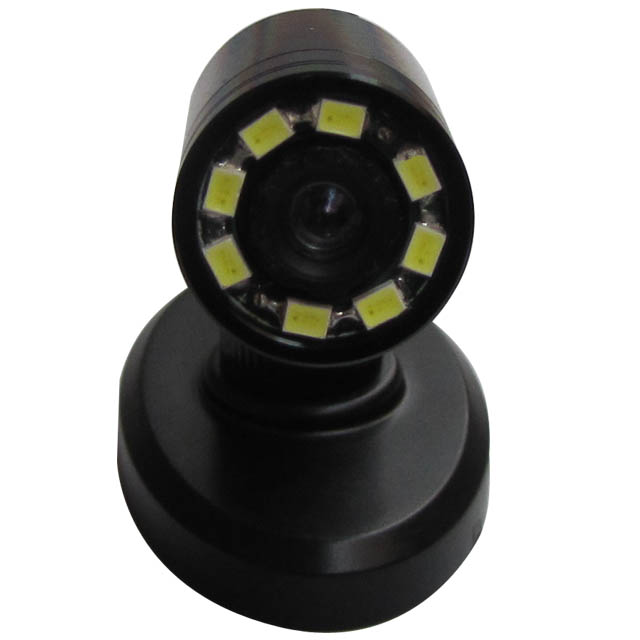

    8 high bright LED mini spy camera with high luminous flux (F1.2) and wide view angle (90 degree) mini lens


    Condition:New
    Model :MCV8LED


  3. This camera comes with high sensitive CMOS sensor, high luminous flux (F1.2) and wide view angle (90¡ã) mini lens. 8 controllable high bright LED lamps enable the effective recording distance up to 8 meters, and surveillance area up to 100 square meters in the complete darkness. This series of products are of small volume and light weight, high stability and ultra long working life. They are very suitable for day & night hidden surveillance, project monitoring, and equipment maintenance, etc.

    Main Features:

    * Small Size: easy to install into narrow room and slim tube, etc.
    * Light Weight: easy install without causing unnecessary damage on object surface
    * 8 high bright LED lamps enable the effective recording distance up to 8 meters
    * High luminous flux (F1.2) and wide view angle (90¡ã) mini lens
    * High resolution, high sensitivity, high SNR
    * Surveillance area up to 100 square meters in the complete darkness
    * Day & night dual mode auto switch
    * 520TVL Digital chip synthesis technology offers true color & HD video
    * Low Illumination, high quality video record function
    * Low Current and power consumption
    * CMOS sensor generation IV+DSP chip offer true color & HD video

    Day/Night 520TVL Mini CCTV Camera with 8 LEDs F1.2 and 90 deg view angle
    Day/Night 520TVL Mini CCTV Camera with 8 LEDs F1.2 and 90 deg view angle

    Day/Night 520TVL Mini CCTV Camera with 8 LEDs F1.2 and 90 deg view angle
    Day/Night 520TVL Mini CCTV Camera with 8 LEDs F1.2 and 90 deg view angle

    Specification:

    PICK UP ELEMENT Single chip 1/3 CMOS
    SYSTEM NTSC
    NUMBER OF PIXEL NTSC:656(H)¡Á492(V)
    SENSOR DIMENSION 4.75mm(H)¡Á3.55mm(V)
    HORIZONTAL RESOLUTION Approximately 520TV Lines
    SENSITIVITY 0.00Lux/5m
    LENS & VIEW ANGLE 0.5mm F1.2 / 90 ¡ã
    LED Control 1:Light(Default) 2:On-Off 3:Self-Motion
    LED 8 LED:17600mcd
    VIDEO OUT 1.0V p-p/75ohm
    LED Control OUT 1:AV(Default) 2:On-Off 3:Photosensitive Resistor
    WEIGHT Camera:12g Stand:15g
    WORK CURRENT DC5V:70mA(Lamp Off)/185mA(Lamp On);DC12V:35mA(Lamp Off)/ 85mA(Lamp On)
    POWER REQUIREMENT DC5V:(3.6-5V ) DC12V:(3.6-24V )
    OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC ,less than 90% RH
    Connection PIN1=>Red DC5V PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=>White LED Control OUT

    Contents:
    * mini camera   X1;

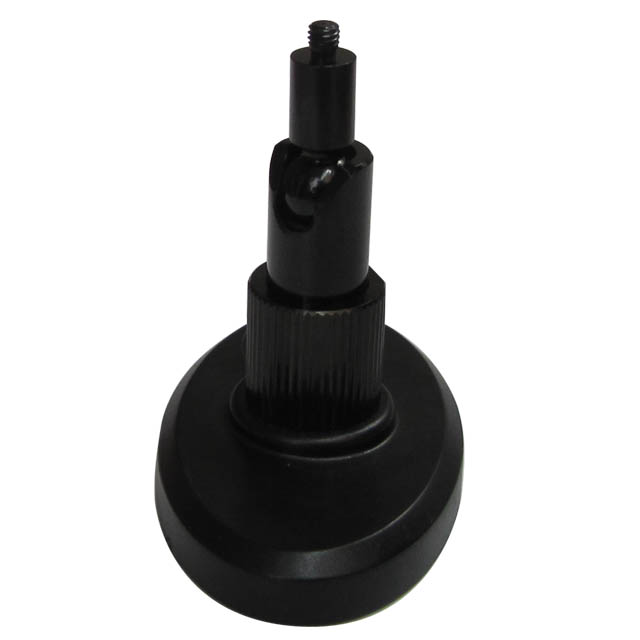

    * stand X1;
    * AC adapter X1
