32chs Wireless Transmission Kit Features :
* Built-in with 25mW 32CHs 5.8Ghz transmitter.
* It covers over 100 meters with excellent video and audio.
* Wide view angle lens: 90°or 120° for optional.
* 7V-24V wide working voltage.(Support 2S-6S lipo battery)
* Ultra-light weight, only 7 gram.
* No need troublesome cables connecting, just power it up to use.

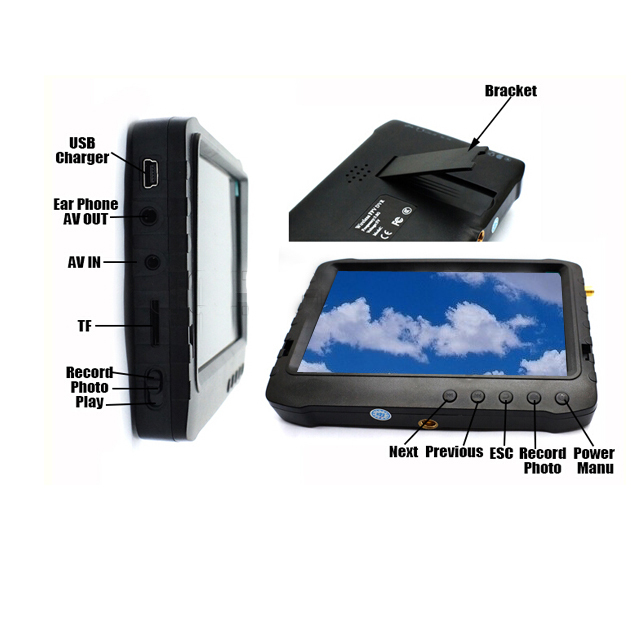

Basic Information of: Receiver of 32ch Wireless Transmission Kit
* Display: 5-inch HD screen (800X480pix).
* Wireless Receiving:Built-in 5.8G/ 2.4G/1.2G wireless receiving module.
* Channel Switch:Supports 32 channels, a key to auto scan to lock channel.
* Antenna: Folding SMA antennaassures excellent wireless receiving.
* Recording: Supports seamless cycle and continuous video from wired/wireless cameras
* Photo:Supports function of taking pictures either from wired or wireless cameras.
* AV IN:TV-IN (NTSC / PAL).
* AV OUT:(NTSC / PAL).
* Battery:Built-in 3200mAh high capacity Li-battery.
* Speaker: Built-in speaker of 1W.
* Storage: Supports up to 32GB TF card.
* Language: Supports multi-language.
* Supports Power-saving Mode:automatic shutdown, automatic off-screen.
* Automatic upgrade: Supports system automatic upgrade.

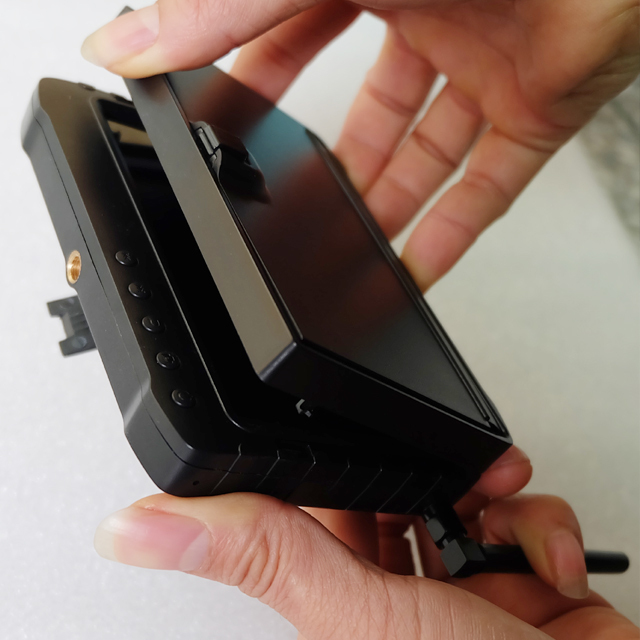

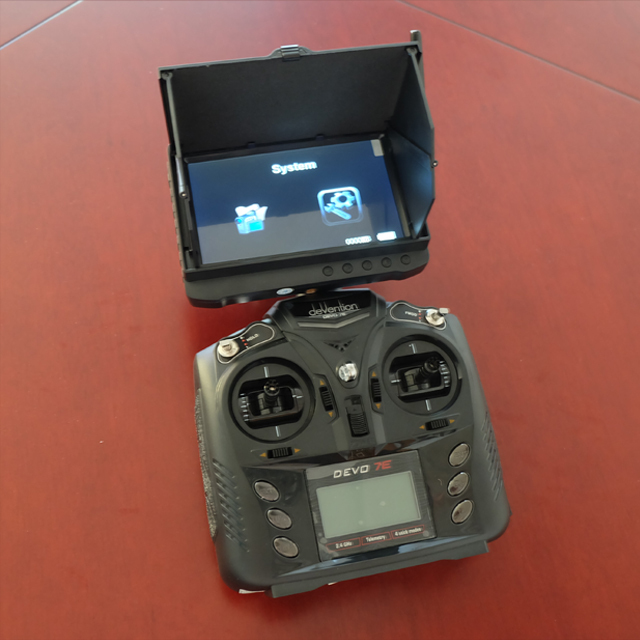

* Sunshade Cover Provided: Screen video can be viewed clearly under sunshine.
* Screw-socket: 1/4 inch standard screw socket.
Camera:
| PV Camera |
Video |
Optical Element | 1/3 CMOS Sensor |
| Optical Total Pixels | 520tvl | ||
| Format | NTSC/PAL | ||
| Sensitivity | 0.008Lux/F1.2 | ||
| Lens & View angle | 0.5mm F1.2 90 °-120° | ||
| Audio | Support | ||
| Dimension | 41mmX 13mmX 13.5mm | ||
| Transmitter | Working frequency | 5.8Ghz | |
| Working channel | 32 channels | ||
| RF OUTPUT POWER | 25mw(Real) | ||
| POWER REQUIREMENT | 7-24V(2S-6S) | ||
| Antenna | RP-SMA 3 Blade |

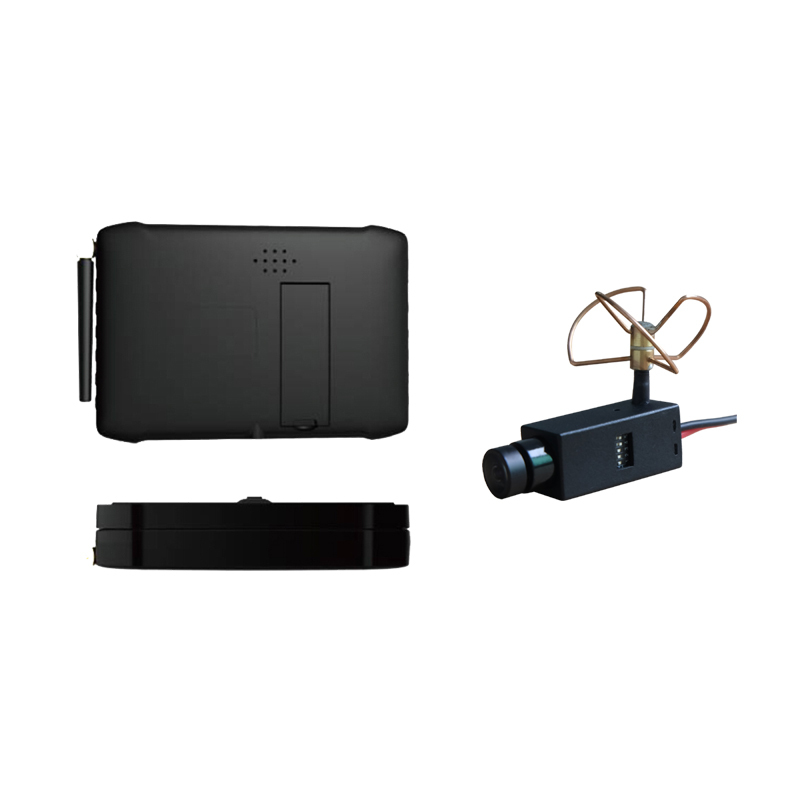

HD 5.8GHz 5inch Wireless Mini Camera DVR Receiver:
| Receiver | 5.8Ghz 32CHS -92dB |
A1: 5.740GHz; A2: 5.760GHz; A3: 5.780GHz; A4: 5.800GHz A5: 5.820GHz; A6: 5.840GHz; A7: 5.860GHz; A8: SPI B1: 5.725GHz; B2: 5.745GHz; B3: 5.765GHz; B4: 5.785GHz B5: 5.805GHz; B6: 5.825GHz; B7: 5.845GHz; B8: 5.865GHz C1: 5.733GHz; C2: 5.752GHz; C3: 5.771GHz; C4: 5.790GHz C5: 5.809GHz; C6: 5.828GHz; C7: 5.847GHz; C8: 5.866GHz D1: 5.705GHz; D2: 5.685GHz; D3: 5.665GHz; D4: 5.645GHz D5: 5.885GHz; D6: 5.905GHz; D7: 5.925GHz; D8: 5.945GHz |
| Antenna | RF-SMA 4 Blade | |
| Displayer | Screen size | 5 inch LCD screen |
| Resolution | 800 X 480 Pixel | |
| Contrast | 500:01:00 | |
| Brightness | 350 cd/M2 | |
| Recorder | Storage | TF card 1GB-32GB(optional) |
| Video compress | MPEG-AVI 30fps | |
| Language | Multiple | |
| AV IN | TV system | NTSC / PAL (for wired camera) |
| AV-OUT | Output voltage | 3.6-4.2 V |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left:20MW + right 20mW[16O](suit to largest volume) | |
| Speaker | 1W | |
| HD 5-inch LCD Screen | Active area | 108mm(W) x 64.8mm(H) |
| Resolution | 800 x 480 Pixel | |
| Luminance for LCM | 200cd/M2 | |
| Video | Resolution | 720*576/720*480 |
| Video compress | MPEG-AVI 30fps | |
| Play format | MPEG-AVI | |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB (optional) |
| 32GB recording time | 10-32 hours | |
| 1GB photos | 15625pcs | |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 | |
| Language | Multiple | |
| Power | Votage | DC 5V |
| Current(receiving mode) | 600MA | |
| Current(recording mode) | 680MA | |
| Current( recording with off-screen mode) | 340MA | |
| AC adapter | DC 5V 2A | |
| Built-in battery | Li-battery 3200Mah | |
| Standby time | Wireless record | ≥9.5 hours(off-screen); |
| Wired record | ≥12 hours(off-screen); | |
| Sunshade | one button open | Patend LCD hood |
| Size(LxWxH) | Without sunshade | 131 x 90.5 x 18mm |
| With sunshade | 131 x 90.5 x 28mm | |
| Weight | Without sunshade | 215G |
| with sunshade | 260G |
package:
* 1 x FPV DVR
* 1 x usb cable
* 1 x AC adapter
* 1 x AV-IN cable
* 1 x AV-out cable
* 1 x wireless camera
* 1 x AC adapter
* 1 x User manual
