  1. HD 5.8GHz Wireless DVR Receiver 5inch Screen FPV Monitor Wireless AV DVR

  2. HD 5.8GHz Wireless DVR Receiver 5inch Screen FPV Monitor Wireless AV DVR


    Condition:New
    Model:MINISPYTP48H
    Warranty 1 Year !

  3. HD 5.8GHz Wireless DVR Receiver 5inch Screen FPV Monitor Wireless AV DVR

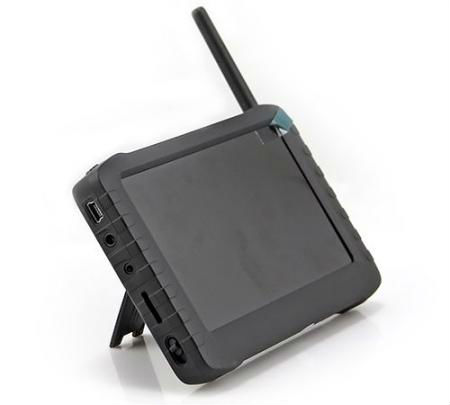

    This Monitor is a new generation portable mini DVR developed by our company.It supports both wireless and wired cameras. Not only this, it adds new function of photo, motion detect, loop recording, power saving (auto shutdown, auto off-screen), etc. This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc.. At the same time, with its stylish and high-end appearance, it also becomes the fashion choice of leisure goods.

    HD 5.8GHz Wireless DVR Receiver 5inch Screen FPV Monitor Wireless AV DVR
    HD 5.8GHz Wireless DVR Receiver 5inch Screen FPV Monitor Wireless AV DVR

    Parameter:

    *  5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design;
    *  Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
    *  Supports storage up to 32G TF card, which records up to 32 hours;
    *  Supports  2.4GHz & 5.8GHz  wireless frequency;
    *  8 channels auto/manual switch;
    *  Folding hidden external antenna assures excellent wireless receiving;
    *  Supports AV IN function: receiving signal from wired cameras;
    *  Photo function: it can take, review & store pictures;
    *  Supports intelligent motion detect video recording;
    *  Overwrite: It supports loop recording, which can automatically overwrite   when storage is full;
    *  Seamless continuous record:No intermittent recording, it will not miss any  detail and wonderfulness;
    *  Support power-saving mode: automatic shutdown, automatic off-screen;
    *   Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
    *  It's of high compatibility, which supports almost all computer operating system, including MAC;
    *   Supports multi-language.

    Specifications:

    Items Value
    Wireless Receiving 2.4GHz -8 channels CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
    ( Choose 1 group of frequency from 2.4G/within 5.8G/beyond 5.8G) CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
    Within 5.8G-8 channels CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
    CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
    Beyond 5.8G-8 channels CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
    CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
    Sensitivity -92dB
    Receiving distance 100 meters
    AV IN TV system NTSC / PAL
    Output voltage 3.6-4.2 V
    HD 5-inch LCD screen Active area 108mm(W) X 64.8mm(H)
    Resolution 800 X 480 Pixel
    Luminance for LCM 200 cd/M2
    Cape clear 5-inch LCD screen Active area 118mm(W) X 62.8mm(H)
    Resolution 480 X 272 Pixel
    Luminance for LCM 300cd/M2
    Video Resolution 720*576 / 640*480
    Video compress MPEG-AVI 30fps
    Play format MPEG-AVI
    Audio Frequency 20HZ-20KHz stereo
    Earphone Output Left: 20MW+ right 20mW [16O](suit to largest volume)
    Speaker 1W
    Photo Format JPG/JPEG
    Storage External SD card TF card 1GB-32GB(optional)
    32GB recording time 10-32 hours
    1GB photos 15625pcs
    Operating system PC Windows & Mac OS
    Port USB 2.0
    Language Multiple
    Power Voltage DC 5V
    Current(receiving mode) 660MA
    Current( recording mode) 680MA
    Current(recording with off-screen mode) 340MA
    AC adapter DC 5V 2A
    Built-in battery Li-battery 3200mAh
    Standby time Wireless record >=9.5 hours(off-screen);>=5hours(on-screen)
    Wired record >=12 hous(off-screen);>=6hours(on-screen) *LED camera not included.
    Size (L x W x H) 131mm x 86mm x 18mm
    Weight(g) 205g

    HD 5.8GHz Wireless DVR Receiver 5inch Screen FPV Monitor Wireless AV DVR

    Package:

    1 * Wireless DVR
    1 * Power adapter
    1 * USB line
    1 * Install back clip
    1 * specification
