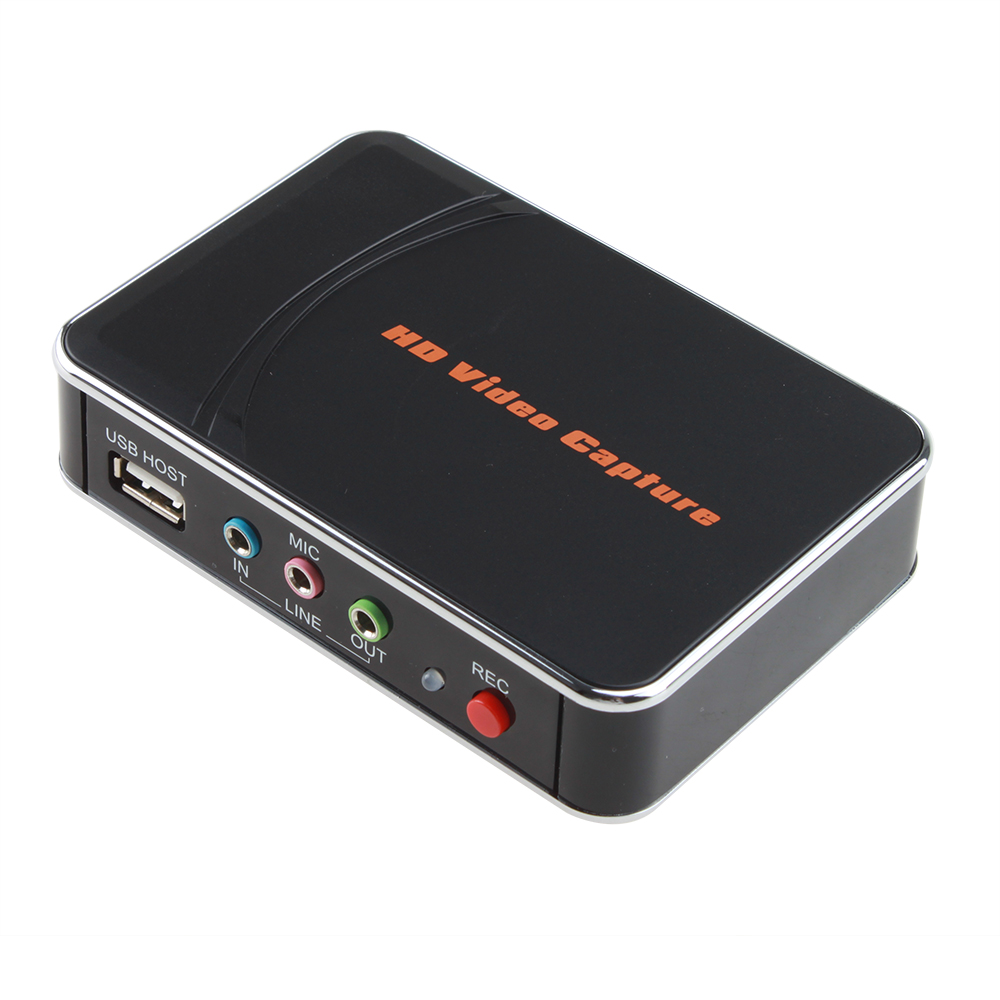

  1. HD Video Capture 1080P HDMI YPBPR For XBOX 360

  2. HD Video Capture 1080P HDMI YPBPR For XBOX 360


    Condition:New
    Model:HVC1080
    Warranty 1 year !

  3. HD Video Capture 1080P HDMI YPBPR For XBOX 360

    Features :

    *  1080P recording with one click, no PC enquired. You only simple insert one USB Flash disk to get it anywhere, anytime.
    *  Bring it out of your room and share the gameplay and fun with your friends anywhere.
    *  Easy to use, no any set-up. You just click RECORD button to record your gameplay, and re-click to stop recording.
    *  With 1080P HDMI by through, you can play HD gameplay when you're recording it.
    *  With extral audio input, allows you record your own live voice from microphone with gameplay video together.
    *  NOTE: Before you record video, you have to Enable HDCP first.

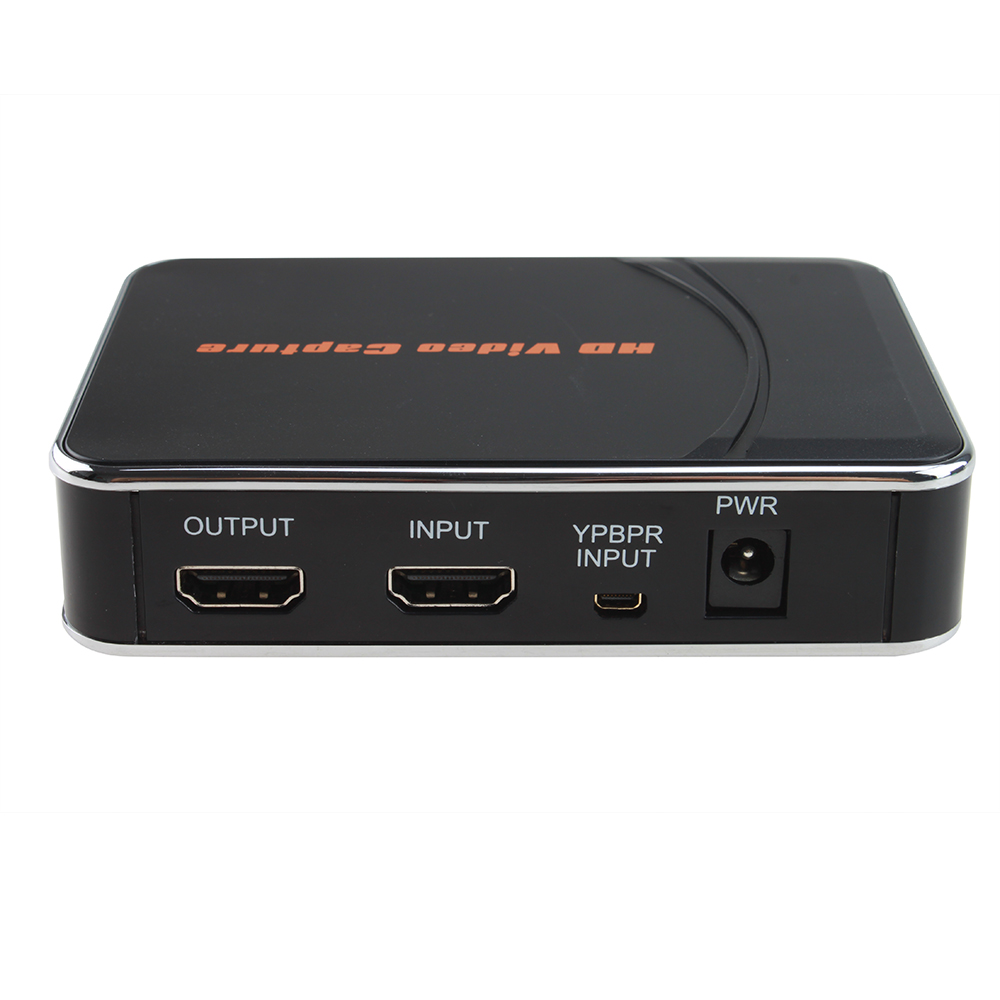

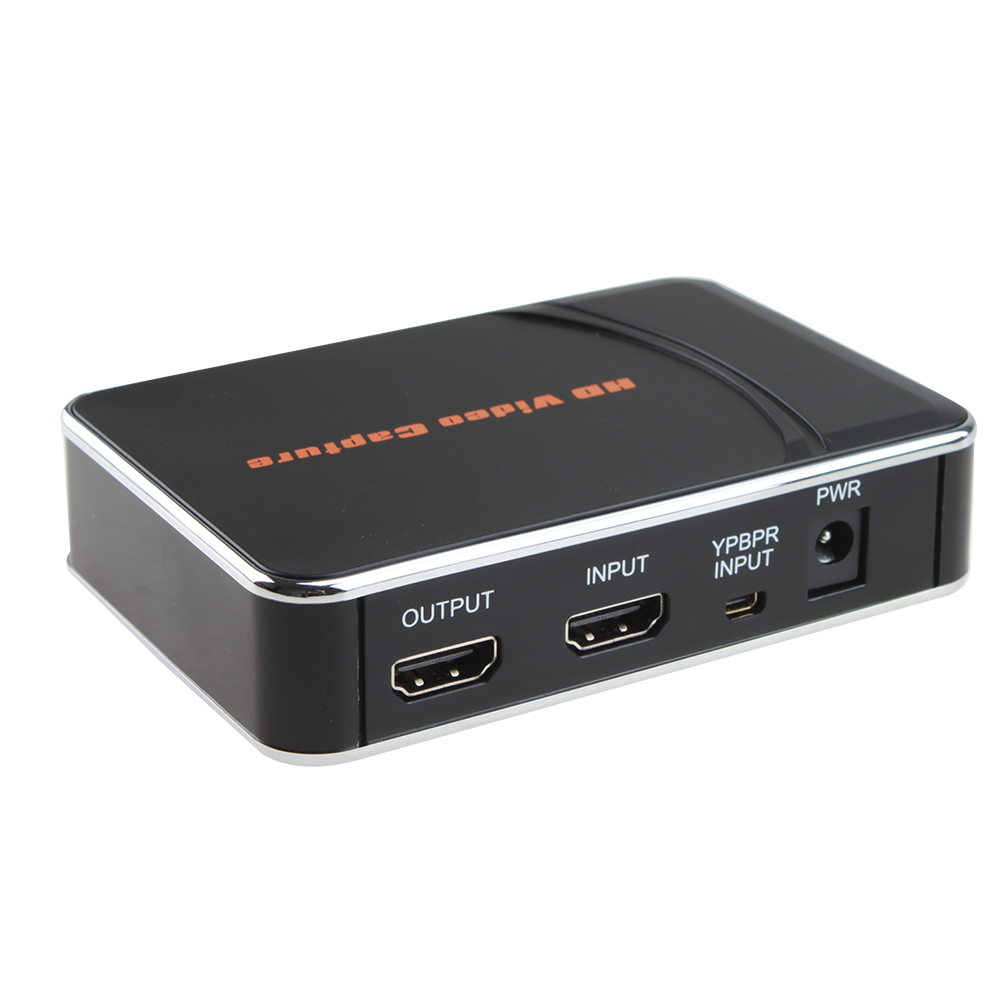

    Connection :

    *  Interface: USB 2.0 host for USB Flash disk or USB hard disk
    *  Video Input: Digital / HDMI, Analog / Component Video.
    *  Audio Input: Digital / HDMI, Analog / RCA Audio L/R, 3.5mm Line In, 3.5mm Microphone In.?Mic In and Line In only can use for component video input, don't support HDMI input)
    *  Video Output: Digital / HDMI (Pass-through from HDMI or Component).
    *  Audio Output: Digital / HDMI(Pass-through from HDMI or Audio RCA L/R Input), Analog / 3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input)

    Application Connections with Game Consoles :

    *  HDMI: WiiU, Xbox 360, Xbox One, PS4
    *  Component: WiiU, Xbox 360, PS3

    Hardware Extra :

    *  Codec: Hardware MPEG4 encoder
    *  User Interface: On-board Hot Button for one-click recording / streaming, LED indicator for working sratus.
    *  Dimension: 110 * 75 * 27 mm
    *  Weight: 135g

    Standards :

    *  Storage Media: USB Flash Disk, Portable Hard Disk (exFAT format is not supported)
    *  Input Resolution / Pass-through:
    *  720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
    *  Capture Resolution:
    *  720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
    *  Record Format: Video / AVI MPEG4, Audio / AAC Stereo
    *  Record Quality: Max 18Mbps@1080P 30fps
    *  Record File: Max 2GB/per file
    *  Record Place: Max 140MB/minute, 8.4GB/hour
    *  Power Supply: DC 5V 2A

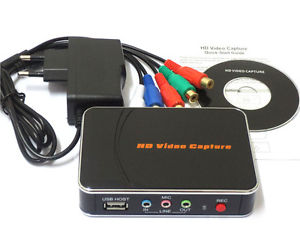

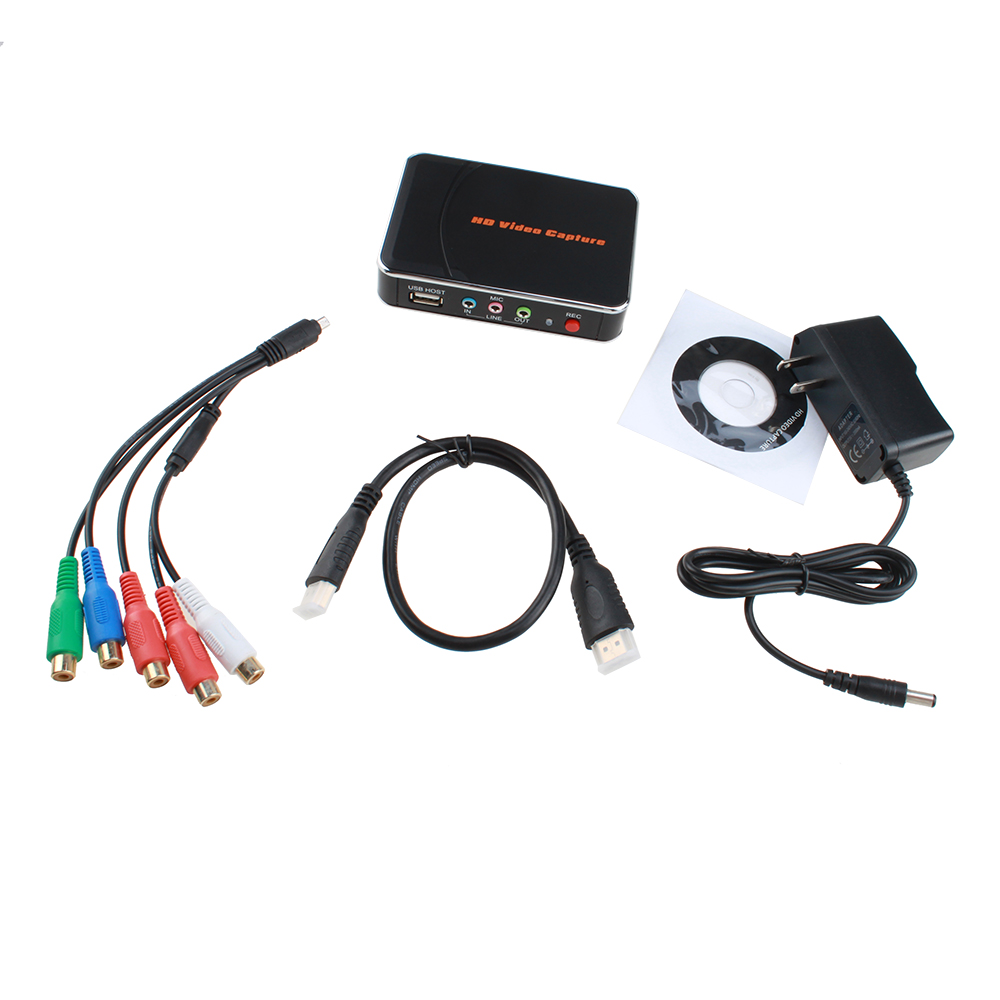

    Package Includes :

    *  1080P HDMI/YPbPr Recorder
    *  Component video audio connection cable
    *  HDMI cable
    *  Power supply
    *  Manual
    *  Video editing software CD
