| PICK UP ELEMENT | Single chip 1/3 CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC:656(H)x492(V) | PAL:786(H)x576(V) |
| IMAGE SIGNAL PROCESS | Digital Signal Processing System | |
| SENSOR DIMENSION | 4.75mm(H)x3.55mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
| SCANNING SYSTEM | 2:1 Interlace | |
| SENSITIVITY | 0.008Lux/F1.2 | |
| LENS & VIEW ANGLE | 3.6mm F2.0 / 90 deg | |
| S/N RATIO | 52dB | |
| ELECTRONIC SHUTTER | OUT (1/60 S TO 1/100000 S) | OUT (1/50 S TO 1/100000 S) |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| AUDIO OUT | 1.0V p-p/1Kohm | |
| SIZE (L x W x H) | 24mm x 18mmM x (15-25mm) | |
| WEIGHT | 5g | |
| WORK CURRENT | 70mA | |
| POWER REQUIREMENT | DC 3.3V-6V | |
| OPERATING TEMPERATURE | - 10¡ã C ~ +50¡ãC ,less than 90% RH | |
| Connection | PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT PIN4- white AUDIO OUT | |
It's a high definition thin-sized CCTV camera with excellent night vision.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Small size make it easy to install and conceal.Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm. .
Ready AV/BNC cable and power supply cable. Just plug & play!
Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR
The package:

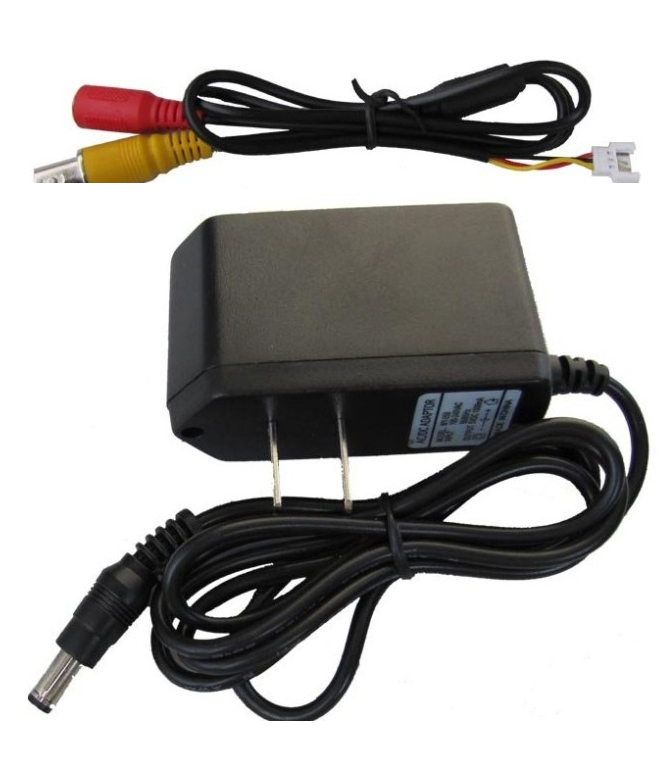

1*Mini camera ;
1*AC adapter
1* RCA/BNC cable (Only one cable, if no choice, we will ship at random)
