  1. Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera

  2. Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera

    3.6-24v wide voltage and 90Deg view anlge plug and play


    Condition:New
    Model: MCSD-91A


  3. Main Features:

    *  90 degree wide view angle,3.6-24v wide voltage
    *  Small Size: easy to install into narrow room and slim tube, etc.;
    *  Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;

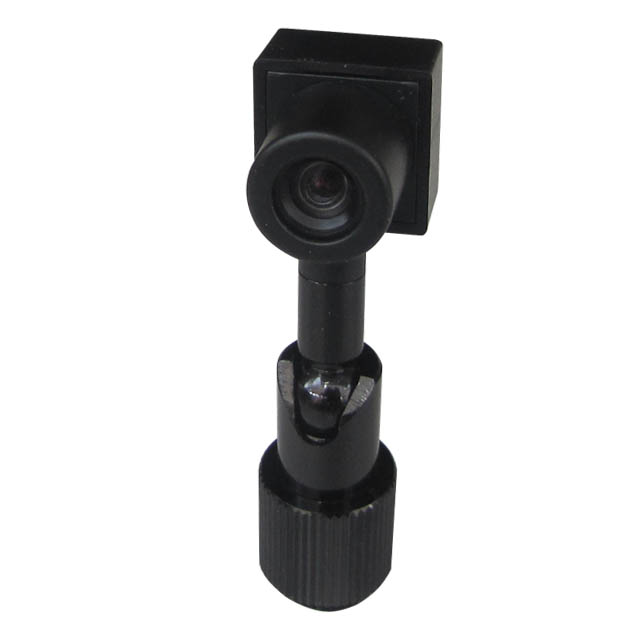

    *  Camera stand can rotate 360 degrees, all-round monitoring
    *  High resolution, high sensitivity, high SNR;
    *  Day & night dual mode auto switch;
    *  Low Illumination, Low Current and power consumption;
    *  CMOS sensor generation IV+DSP chip offer true color & HD video.

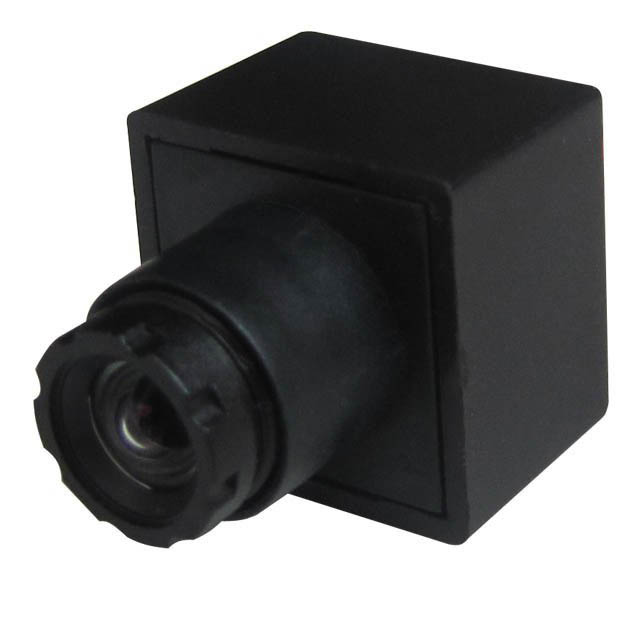

    Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera
    Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera
    Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera

    Usage:

    1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
    2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;3) To view on your computer or laptop you will need a DVR card or USB;
    4) A standalone system that records is a standalone DVR;
    5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.

    Specifications:

    PICK UP ELEMENT Single chip 1/4CMOS
    SYSTEM NTSC PAL
    NUMBER OF PIXEL NTSC:720(H)¡Á480(V) PAL:720(H)¡Á576(V)
    SENSOR DIMENSION 3.584mm(H)¡Á2.688mm(V)
    HORIZONTAL RESOLUTION Approximately 480TV Lines
    SENSITIVITY 0.05Lux/F1.2
    LENS & VIEW ANGLE F1.2 / 90¡ã
    S/N RATIO 48dB
    AUTO GAIN CONTROL OUT
    WHITE BALANCE CONTROL OUT
    BACK LIGHT COMPENSATION OUT
    VIDEO OUT 1.0V p-p/75ohm
    WEIGHT 5G
    SIZE(LXWXH) 15.5X15.5X20mm
    WORK CURRENT DC12V: 45mA DC5V: 95mA
    POWER REQUIREMENT DC:3.6V-24V
    OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC ,less than 90% RH
    Connection PIN1=>:Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT

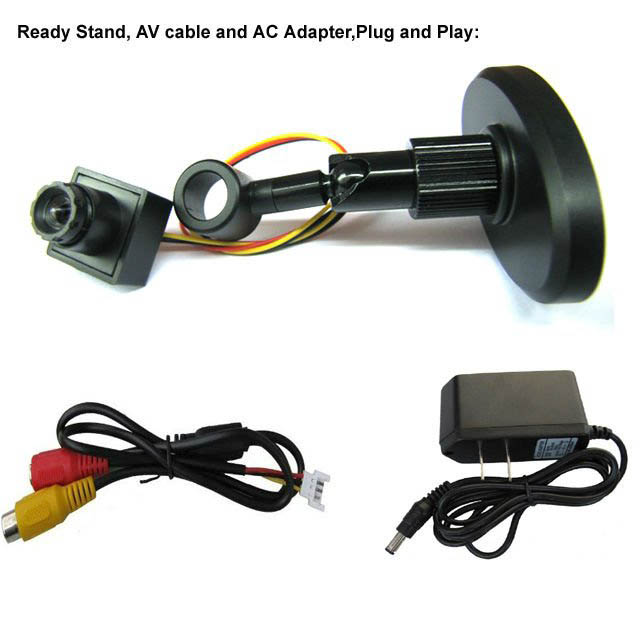

    Package contents :
    * mini camerax1
    * Stand x 1
    * RCA or BNC Cable x1
    * AC Adapterx1
