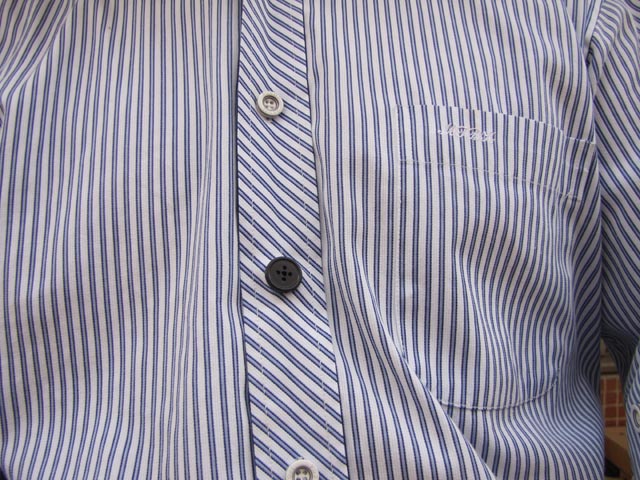

  1. Ultra small high definition button HD and night vision mini 520TVL SPY Audio Camera

  2. Ultra small high definition button HD and night vision mini 520TVL SPY Audio Camera

    Mini 520TVL SPY Audio Camera ,9.5*9.5*12mm;0.008lux


    Condition:New
    Model : MSPY520TVL
  3. Features & functions:

    It's a ultra small  high definition CCTV camera with excellent night vision.
    Size is 9.5X9.5X12mm only, Weight is 1g! Very easy to install and conceal.
    Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
    Full TV system. Applicable worldwide.

    Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

    Ready AV/BNC cable and power supply cable. Just plug & play!






    Specification :

    PICK UP ELEMENT Single chip 1/3 CMOS
    SYSTEM NTSC PAL
    NUMBER OF PIXEL NTSC:656(H)กม492(V) PAL:786(H)กม576(V)
    IMAGE SIGNAL PROCESS Digital Signal Processing System
    SENSOR DIMENSION 4.75mm(H)กม3.55mm(V)
    HORIZONTAL RESOLUTION Approximately 520TV Lines
    SCANNING SYSTEM 2:1 Interlace
    SENSITIVITY 0.008Lux/F1.2
    LENS & VIEW ANGLE 0.5mm F2.0 /55 กใ
    S/N RATIO 52dB
    ELECTRONIC SHUTTER OUT (1/60 S TO 1/100000 S) OUT (1/50 S TO 1/100000)S
    AUTO GAIN CONTROL OUT
    WHITE BALANCE CONTROL OUT
    BACK LIGHT COMPENSATION OUT
    VIDEO  OUT 1.0V p-p/75ohm
    AUDIO  OUT 1.0V p-p/1Kohm
    SIZE  (L x W x H) 9.5mm x 9.5mmM x 12mm
    WEIGHT 1g
    WORK CURRENT 70mA
    POWER REQUIREMENT DC 3.3V-6V
    OPERATING TEMPERATURE - 10 C ~ +50C ,less than 90% RH
    Connection PIN1-Red DC5V  PIN2-Black GND  PIN3-Yellow VIDEO OUT  PIN4-white AUDIO OUT

    Usage:
    1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
    2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
    3) To view on your computer or laptop you will need a DVR card or USB;
    4) A standalone system that records is a standalone DVR

    package:

    1 * Mini camera ;
    1 * AC Adapter
    1 * RCA/BNC cable (Only one cable, if no choice, we will ship at random)
