It's a new product combined the technology of electronics, optics and 2.4GHz wireless. It's very small size and light weight, very convenient to carry.

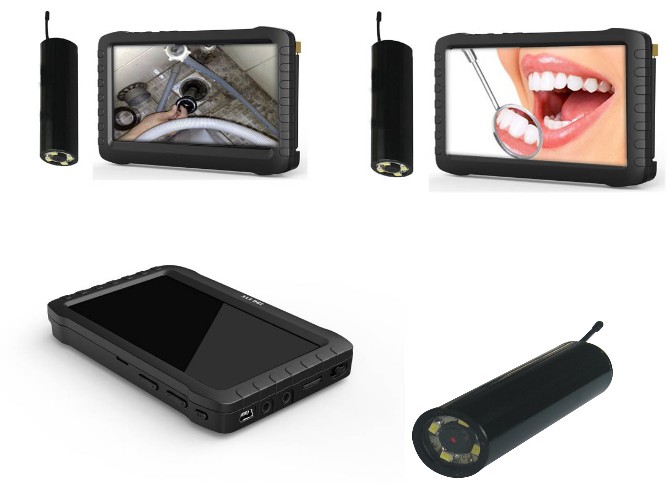

Wireless Borescope Camera + 2.4GHz wireless camera DVR receiver monitor 5-inch screen .
It can be used in the dangerous & complicated surroundings, like high-altitude working. It's easy operated and powered by high capacity Li-battery with 1.5 hours continuous working time. High brightness LED/IR offers long visible range up to 8 meters. Moreover, it offers high definition video and good performance. If it works with our wireless DVR-TE968H, users can as inspect according to video, as record. Look over some recorded video repeatedly. If the video is not satisfactory, users can delete it and rerecord. DVR memory is large up to 32GB.If it works with wireless USB receiver, users can view instant video in computer, and record, edit and print the inspection report.
Application:
Auto engine and gearing inspection; Medical inspection, like dental, skin disease, gynecology, etc.; All kinds of pipe & tube, building inspection; Antiterrorism search & rescue; Safety inspection; Archeology, etc.
Features:
* Super small size & light weight camera & DVR, very convenient to carry;
* High resolution 720X576pix(PAL),720x480pix(NTSC),520TVL camera offers good quality video;
* 6 LED/IR lamps offers 5 or 8 meters clear view in complete darkness;(LED can be highlight or turned off;IR is invisble light);
* High capacity built-in Li-battery offers power supply for camera and DVR anywhere;
* No need any installation, and very easy to operate, just power on and it works!
* First complete wireless mini inspection camera with LED in the world!
* Portable 5-inch HD(800X480pix) DVR offers both real time and recorded videos & photos;
* Motion detect recording and loop recording available;
* Large memory available( support mini SD card up to 32GB)
* Wireless transmission offers convenience for remote view.
Borescope Camera Specifications:
| Frequency | 2414Mhz(CH1) | |
| RF Output Power | 50mW (300 feet in line of sight) | |
| Total Pixels | PAL:720 X 576 NTSC:720 X 480 | |
| Minimum Illumination | 0.01Lux / F1.2 | |
| Lens Focus | 1-100cm (adjustable) | |
| View Angel | 90° | |
| Light Source | LED | 2200mcd x 6 Range of LED lamp: 5 meters |
| IR/940nm | 70mW x 6 Range of IR940 lamp: 5 meters | |
| IR/850nm | 70mW x 6 Range of IR850 lamp: 8meters | |
| Li-battery Capacity | 380MAH | |
| Working Time | 1.5 hours | |
| Charge Time | 1.5 hours | |
| Voltage | DC 5V | |
| Current | Lamp off:160mA Lamp on: 260mA Lamp highlight:300mA | |
| Weight | 35g | |
| Size(DXL) | 20mm X 84mm | |
2.4GHz Wireless DVR :
The latest portable mini DVR supports both wireless and wired cameras. Not only this, it adds new function of photo, motion detect, loop recording, power saving (auto shutdown, auto off-screen), etc. This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc.. At the same time, with its stylish and high-end appearance, it also becomes the fashion choice of leisure goods.
Features and functions:
* Mini size and portable recorder with fashionable & new design;
* 5-inch super large HD screen (800X480pix), which provides clear and smooth image;
* Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
* Supports storage up to 32G TF card, which records up to 32 hours;
* Supports wireless signal from total 24 channels among 2.4GHz & 5.8GHz (within & beyond) frequency;
* Folding hidden external antenna assures excellent wireless receiving;
* Supports AV IN function: receiving signal from wired cameras;
* Photo function: it can take, review & store pictures;
* Supports intelligent motion detect video recording;
* Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
* Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
* Support power-saving mode: automatic shutdown, automatic off-screen;
* Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions.;
* It’s of high compatibility, which supports almost all computer operating system, including MAC;
* Supports multi-language.
Specifications:
| Items | Value | |
| Wireless Receiving | 2.4GHz –8 channels | CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. |
| CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz | ||
| Sensitivity | -92dB | |
| Receiving distance | 100 meters | |
| AV IN | TV system | NTSC / PAL |
| Output voltage | 3.6-4.2 V | |
| HD 5-inch LCD screen | Active area | 108mm(W) X 64.8mm(H) |
| Resolution | 800 X 480 Pixel | |
| Luminance for LCM | 200 cd/㎡ | |
| Cape clear 5-inch LCD screen | Active area | 118mm(W) X 62.8mm(H) |
| Resolution | 480 X 272 Pixel | |
| Luminance for LCM | 300cd/㎡ | |
| Video | Resolution | 720*576 / 640*480 |
| Video compress | MPEG-AVI 30fps | |
| Play format | MPEG-AVI | |
| Audio | Frequency | 20HZ-20KHz stereo |
| Earphone Output | Left: 20MW+ right 20mW [16O](suit to largest volume) | |
| Speaker | 1W | |
| Photo | Format | JPG/JPEG |
| Storage | External SD card | TF card 1GB-32GB(optional) |
| 32GB recording time | 10-32 hours | |
| 1GB photos | 15625pcs | |
| Operating system | PC | Windows & Mac OS |
| Port | USB 2.0 | |
| Language | Multiple | |
| Power | Voltage | DC 5V |
| Current(receiving mode) | 660MA | |
| Current( recording mode) | 680MA | |
| Current(recording with off-screen mode) | 340MA | |
| AC adapter | DC 5V 2A | |
| Built-in battery | Li-battery 3200mAh | |
| Standby time | Wireless record | ≥9.5 hours(off-screen); ≥5hours(on-screen) |
| Wired record | ≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included. | |
| Size (L x W x H) | 131mm x 86mm x 18mm | |
| Weight(g) | 205g | |
Packages:
* DVR X 1PCS
* User manual x1pcs
* Stereo earphone x1 pcs
* USB cable x1pcs
* AC adapter x1pcs
* Back holder for installation x1 pcs
