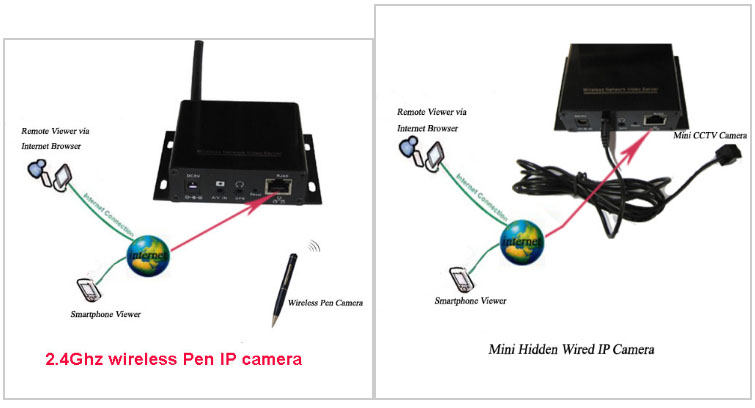

This wireless network video server is equipment for receiving 2.4GHz wireless audio & video and real time transmitting on Ethernet. The NVS offers a smooth video transmission and higher level of resolution, with high-performance SOC (ARM+DSP) specially designed for multimedia processing, and high performance operating system and sound video frequency compression algorithm. The NVS is available multiple ports for function expansion so as to meet your higher requirement; with the built-in WEB server, it can enhance the performance of the traditional monitoring system, and provide network connectivity for publishing monitoring image on a safe LAN or Internet. IP camera management, configuration, monitor, etc. is easy to operate through the Internet Explore(IE browser). and the operation is rather simple and convenient.
Function introduction:
* Support 2.4GHz wireless receiving (8 channels), constitutes wireless IP camera;
* Support AV input of wired camera, constitutes wired IP camera;
* Support D1, 2CIF, CIF, QCIF,(704*576¡¢704*288¡¢352*288¡¢176*144) resolution;
* Support H.264, MJPEG image compression encoding;
* Support PTZ control, alarm I/O, two-way Talkback, third-class user rights, with perfect functions;
* Support any PTZ protocol ; it can definite PTZ protocol document to upgrade and update;
* Two-way voice Talkback, support external audio input and output;
* Complete network protocol, support RTSP, VLC£¨PS/TS£© Media Protocol;
* Support the mobile phone for remote monitoring;
* Support WIFI wireless transmission, support network search function and support WEP/WPA/WPA2 cipher mode;
* Support front-end SD card for memory
Technical specifications:
| 2.4GHz Wireless Receiving | |
| Receiving Frequency | ISM 2,360MHz~2,520MHz |
| Audio subcarrier frequency | Default£º6.0Mhz Optional:6.5MHz |
| Channel | Support 8 channels |
| Receiving Sensitivity | ¡Ü -85dBm |
| Antenna | 50ohm SMA |
| AV INPUT¡¡ | |
| Video Input Level | 1Vp-p@75ohm |
| Audio Input Level | 1Vp-p@1Kohm |
| Power Supply output | DC5V |
| Compression standard | ¡¡ |
| Video frequency compression standard | H.264/MJPEG |
| Compression output code rate | 32K¡«4Mbps/1M¡«16Mbps |
| Audio frequency compression standard | G.711 |
| Audio frequency output code rate | 64Kbps |
| Image¡¡ | |
| Image size | 704*576£»704*288£»352*288£» 176*144 |
| ¡¡ | 704*480£»704*240£»352*240 |
| Frame Rate | 1-30f/s |
| Function ¡¡ | |
| 2.4GHz wireless receiving | Support |
| AV input of wired camera | Support |
| Mobile phone monitoring | Support |
| Network protocol | PPPoE¡¢DHCP¡¢TCP/IP¡¢HTTP¡¢UDP¡¢RTP/RTCP¡¢RTSP¡¢UPNP¡¢SMTP¡¢FTP¡¢SIP¡¢DDNS¡¢DNS |
| Motion detection | Support |
| Area shield | Support |
| SD Card local storage | Support |
| With WIFI for optional (it is optional to use high power WIFI module) | Support encryption: wep64,wep128,wpa,wpa2 |
| Wireless power: 13dbm(54M) (high power module, wireless power: 20dbm/54M) | |
| Wireless distance: <=70m (high power module<=300M) | |
| General specifications | |
| Working temperature | -10¡æ¡«65¡æ |
| Working humidity | 85%RH or less |
| Power source | DC5V/1A |
| Power consumption | <3W |
| Size (LXWXH) | 7.5cm(L)x 10.5cm(W) x 2.9cm(H) |
| Weight | 180g |
Package:
1 * Wireless Network Video Server
1 * Adapter
1 * CD
