| MODEL NO. | MTV-64G5N | MTV-64G5P | |||
| TV SYSTEM | NTSC | PAL | |||
| IMAGE SENSOR | 1/4-inch CCD Image Sensor | ||||
| CCD TOTAL PIXELS | 542(H) X 493(V) | 537(H) X 597(V) | |||
| SCANNING SYSTEM | 525 lines, 60 fields/sec | 625 lines, 50 fields/sec | |||
| SYNC SYSTEM | Internal / VD-Lock | ||||
| MINIMUM ILLUMINATION | Legacy mode | 1 Lux ( F1.6, 5600ºK) 50IRE | |||
| Star light Mode | 0.03 Lux ( F1.6, 5600ºK ) 50IRE | ||||
| RESOLUTION | 400TVL | ||||
| WHITE BALANCE | Mode | ATW / AWB / FIX | |||
| Range | 3200 ~ 9600 ºK | ||||
| S / N RATIO | 48dB ( MIN ) / 52dB ( TYP ) (AGC OFF£¬r=1£¬APC OFF£¬Y-OUT) | ||||
| B.L.C. FUNCTION | Super BLC,48 zone BLC | ||||
| GAMMA CORRECTION | 0.45 /1 | ||||
| AGC | AUTO (18dB max) | ||||
| ALC | AUTO / FIX | ||||
| IMAGE NEGATIVE | Select by OSD menu | ||||
| CROSS LINE | ON/OFF Select by OSD menu (position adj. by software) | ||||
| FREEZE FUNCTION | Alarm in trigger or Select by OSD | ||||
| ELECTRONIC SHUTTER | AES: 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step | ||||
| LENS | 22X optical ZOOM LENS ,F1.6~3.8,f=4.0~88.0mm | ||||
| ZOOM | 220X (22X optical 10Xdigital) | ||||
| FOCUS | Auto / Manual | ||||
| POSITION | 64 Position (Zoom£¬Focus) | ||||
| VIDEO OUTPUT | Composite & Y/C output 1.0Vp-p at 75 ohm | ||||
| CONTROL FUNCTION | RS-232C/RS-485(selectable) , OSD control | ||||
| OSD LANGUAGE SELECT | ENGLISH / CHINESS_Simp / JAPANESE | ||||
| COMMUNICATION BAUD RATE | 9600 BPS | ||||
| OPERATION TEMPERATURE | -10¡æ TO 50¡æ | ||||
| OPERATIONAL HUMIDITY | within 85©‡RH | ||||
| POWER SUPPLY | DC12V¡À1V / 3.6W(Max) | ||||

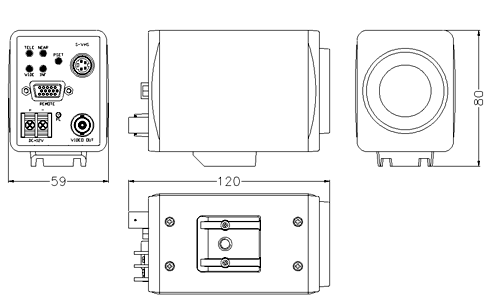

| DIMENSIONS | 120mm(L) X 59mm(W) X 80mm(H) | ||||
