Your Position:Home >> Monitor Box > > 2.5 inch CCTV Camera Tester TFT Monitor Audio Input/Output

Related products

  1. 2.5 inch CCTV Camera Tester TFT Monitor Audio Input/Output

  2. 2.5 inch CCTV Camera Tester TFT Monitor Audio Input/Output


    Model£ºBT-B600

    Place of Origin: Guangdong China (Mainland)

  3. Key Feature £º

     * Portable tester with2.5 inch TFT display(video input)
     * Auto identity NTSC/PAL
     * Power-saving mode can display in a standby state
     * Small appearance, highly integrated and practical
     * Built-in rechargeable battery DC3.7V/1100mAh£¬Automatic charging function
     * Power supply: Battery-powered, computer USB port power supply, DC5V/2A adapter power supply
     * Mainly used in the camera images, perspective adjustment, saves time and effort£¬convenience
    Battery Features£º
     * Standard Capacity£º1100mAh
     * Standard Voltage£º3.7V
     * Maximum charge voltage£º4.2V

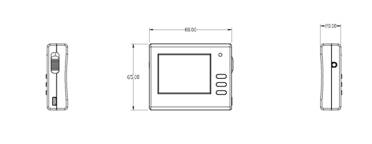

    External Dimension:
    Specification:

    Input voltage 5V¡À10% 2A(electric current)
    Battery DC3.7V£¨1100mAh£© (Rechargeable lithium battery)
    Video signal formats
    		 NTSC/PAL (auto-identity)
    Video output mode 1.0Vp-p (full)
    Charge Time (3 hours)
    Working temperature -20¡æ¡«+60¡æ
    Packing dimention L194mm*W151mm*H83mm
