Your Position:Home >> Monitor Box > > Portable 3.5 inch TFT display(video input and out put) CCTV tester

Related products

  1. Portable 3.5 inch TFT display(video input and out put) CCTV tester

  2. Portable 3.5 inch TFT display(video input and out put) CCTV tester


    Model:BT-B800

    Place of Origin: Guangdong China (Mainland)




  3. Key Feature
     * Portable tester with3.5 inch TFT display(video input and out put)
     * Auto identity NTSC/PAL
     * Power-saving mode can display in a standby state
     * Small appearance, highly integrated and practical
     * Audio test function, built-in 0.5 speaker, support for audio input / output
     * Support DC12V output, charging for camera.
     * Built-in rechargeable battery DC3.7V/2200mAh, Automatic charging function
     * Power supply: Battery-powered, computer USB port power supply, DC5V/2Aadapter power supply
     * Particularly suitable for project installation of the camera effects, the lens range, the lens view angle, etc. adjust positioning, saves time and effort, convenience

    Battery features:

     Standard Capacity: 2200mAh
     Standard Voltage: 3.7V
     Maximum charge voltage: 4.25V

    Specification

    input voltage 5V10% 2A(electric current)
    battery DC3.7V2200mAh(Rechargeable lithium battery)
    Video signal formats NTSC/PAL(auto-identity)
    Video output mode 1.0Vp-p(Full)
    louder speaker 8/0.5w
    charge time 5-6hours
    power output 12V/350mA
    working temperature -20桫+60
    Packing dimension L185mm*W145mm*H80mm
    Weight N.W: 163g G.W: 595g

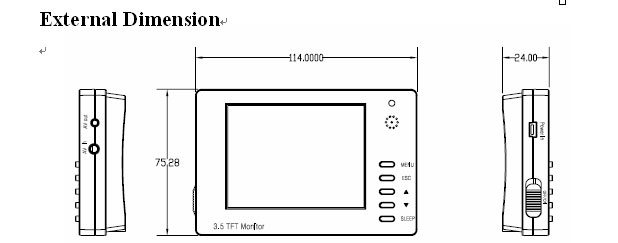

    External Dimension:
