  1. 2.5 inch TFT LCD Multi-functional Keyboard/keypad

  2. 2.5 inch TFT LCD Multi-functional Keyboard/keypad


    Model£ºBT-K106

    Place of Origin: Guangdong China (Mainland)
  3. Key Features:
     *  Professional controller, elegant design
     *  2.5 inch high resolution TNT LCD display, can show cameras image
     *  TFT video playback, 1 line video input
     *  3D rocker, easy to control
     *  OSD editing menu, can adjust PTZ to control parameter and easy to operate.
     *  NTSC/PAL auto-identify, no need manual set
     *  Support RS485/RS232/RS422 communication port
     *  USB port interface design
     *  Support PELCO-P, PELCO-D etc. protocols
     *  Built-in shortcut keys, easy to control
    Specification:

    Specification:

    Power Input DC9V~12V,1A
    Power 5W
    Display Screen 2.5 LCD display
    Video Input BNC
    Video Signal Mode   Auto Adapt
    Video Standard 1.0¡À0.2Vp-p , 75¦¸
    Communication Port RS485/RS422
    RS232 port, DB9
    USB port, 300K Byte/s(Receiving/sending rate)
    Control Protocol PELCO-D, PELCO-P, KALATEL, SAE, VICON. etc
    Communication Baud rate 2400bps,4800bps,9600bps,19200bps
    Control address 1-255
    Control Left /Right; Up/Down
    Iris: On/Off
    Focus: Far/Near
    Zoom: Tele/Wide
    Set and call preset point, tracks scan, Pattern, Horizontal auto scan, home place
    Operation Pole 3D£¨ Left/Right; Up/Down Zoom£©,rotation
    Working Temperature 0¡ã¡«50¡ã

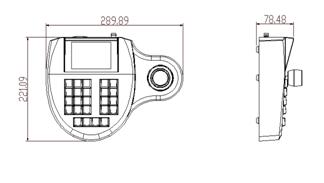

    Package Dimension (L)290mm * (W)221mm * (H)79mm
