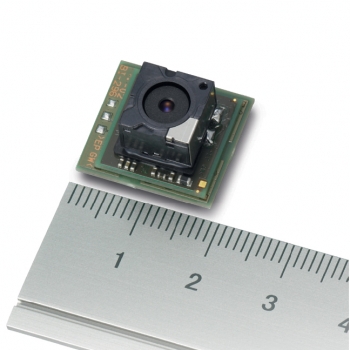

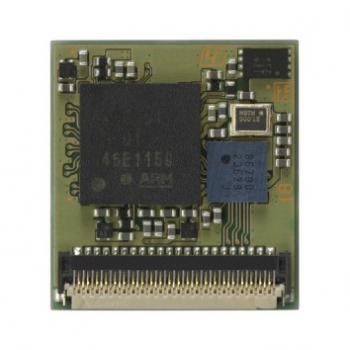

  1. SONY FCB-MA130 16X Zoom HD Compact Color Camera

  2. SONY FCB-MA130 16X Zoom HD Compact Color Camera

    SONY FCB-MA130 HD Industrial Machine Vision CCD Camera


    Model: FCB-MA130
    Condition: Brand New
    Warranty 1 Year !



  3. *  Sony FCB-MA130 16x Zoom HD Compact Color Camera
    *  1920 pixels x 1080p
    *  1/2.45"-type CMOS
    *  16x Digital Zoom, 30fps
    *  (F2.8) Full High Definition Block Camera
    *  Small form factor 16.5x10.3x18.0 mm
    *  Image Stabilizer
    *  Face Detection
    *  Wide Dynamic Range (ATR)
    *  Noise Reduction (3DNR)

    Sony is expanding its popular FCB Block Camera Series with the introduction of an ultra-compact, all-in-one color camera C the FCB-MA130 C which supports both moving pictures and still images.

    Colour Block CameraWith its modest dimensions, the FCB-MA130 contributes to reducing the size of finished products, and this can be useful in wide range of applications. Incorporating a 1/2.45-type Exmor CMOS sensor and Sony's original image signal processor, this new camera enables users to capture Full HD resolution (1080p/30) movies and 13-megapixel still images. The FCB-MA130 features several other useful functions, including embedded Image Stabilizer and Face Detection, thanks to Sony's original image signal processor. Outstanding compactness coupled with high-quality images C with these capabilities, Sony anticipates this remarkable camera is set to open up brand new industrial applications.
    The FCB-MA130 enhances the current collection with its highly compact size (16.5 x 10.3 x 18.0 mm) and high-quality images. With the ability to capture Full High Definition (1080p/30) moving pictures, this micro camera offers more solutions for a wide variety of industrial applications.

    SONY FCB-MA130 Specifications:

    *  Image sensor:  1/2.45-type Exmor CMOS
    *  Standard output pixels:  Approximately 13 Megapixels
    *  Signal System (movie):  1920 x 1080 (FHD), 1600 x 1200 (UXGA), 1280 x 960 (SXGA), 1280 x 720 (HD), 1024 x 768 (XGA), 800 x 480 (WVGA), 640 x 480 (VGA); 30fps/25fps*
    *  Signal System (still):  4192 x 3104, 4128 x 3096 (13M), 3264 x 2448 (8M), 2592 x 1944 (5M), 1920 x 1080 (FHD), 1280 x 960 (SXGA), 1280 x 720 (HD), 640 x 480 (VGA)
    *  Digital Zoom:  16x
    *  Angle of View:  H: Movie Mode: 53, Still Image Mode: 58 (720p/1080p modes)
    *  Lens:  F2.8
    *  Gain:  Auto
    *  Focus:  One-push AF
    *  Object Distance:  Minimum 100mm
    *  Exposure Control:  Auto, Hold, Manual, Shutter priority, Gain priority
    *  Shutter speed:  1/25 to 1/5000 s, total 24 steps
    *  Sync System:  Internal
    *  AE Control:  Auto, Hold, Manual, Shutter priority, Gain priority
    *  Backlight Correction:  Yes
    *  White Balance:  Auto, Hold, ATW, Fixed (light bulb, neutral color fluorescent light, clear sky, cloudy sky, daylight color fluorescent light, light bulb color fluorescent light)
    *  Video Output:  CMOS Clock 81MHz, Parallel 16bit (YCbCr422 / SAV, EAV selectable) / Sync Signal (HD, VD)
    MIPI D-PHY Clock 324MHz, Data 2lane CSI-2 (YCbCr422)
    *  Camera Features:  ATR, Noise Reduction, Image Stabalization for image and movie, Face Detection, Picture Effects (Flip horizontal, Flip vertical)
    *  Picture Effects:  Flip Horizontal, Flip Vertical
    *  Power requirements:  3.30.1, 1.80.1, 1.2-0.05/+0.1 V DC
    *  Power consumption:  700 mW (at FHD movie)
    *  Operating temperature:  -5 C to +50C; 23F to 122F
    *  Storage temperature:  -20C to +60C; -4F to +140F
    *  Operating humidity:  20% to 80%
    *  Storage humidity:  20% to 95%
    *  Dimensions (W x H x D):  16.5 x 10.3 x 18.0 mm; 21/32 x 13/32 x 23/32 inches
    *  Mass:  Approx. 2.2 g; 0.078 oz
