  1. Sony SSC-N11 Mini Dome Camera With 540TVL analogue camera

  2. Sony SSC-N11 Mini Dome Camera With 540TVL analogue camera

    540TVL high resolution 0.55 lx and low power consumption


  3. Overview:

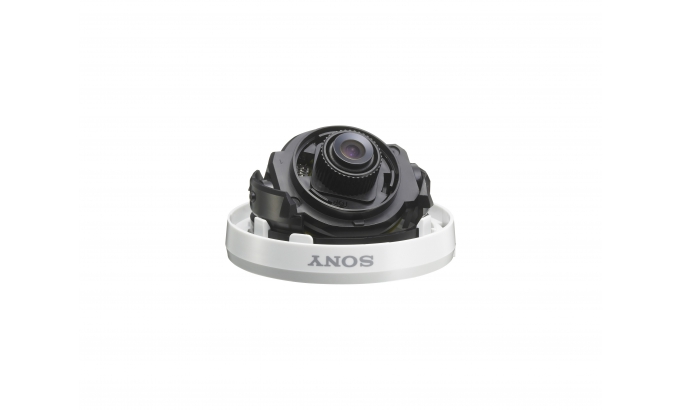

    The Sony SSC-N11 is a high resolution analogue mini-dome security camera with a 1/3 Super HAD CCD II sensor, electrical Day/Night function, ATR-Lite, iBLC and a fixed focal length of 3mm.

    With a horizontal resolution of 540 TV lines and high sensitivity, this cleverly designed compact camera is ideal for a wide range of applications C achieving optimum surveillance even in difficult lighting conditions.


    Image device 1/3-type Super HAD CCDII
    Number of effective pixels (H x V) 440,000 pixels (752 x 582)
    Signal system PAL standard
    Horizontal resolution 540 TV lines
    S/N ratio More than 55 dB (AGC Off)
    Minimum illumination Color: 0.55 lx, B/W: 0.3 lx (F2.0, 50IRE); Color: 0.35 lx, B/W: 0.2 lx (F2.0, 30IRE)
    Video output VBS:1.0Vp-p
    Synchronization Internal lock
    Gain control Auto (on/off)
    White balance ATW (2000K to 10000K)
    Lens type Fixed focal lens
    Zoom ratio Fixed
    Horizontal viewing angle 95.9 degree
    Focal length f=3.0 mm
    F number F2.0
    Minimum object distance 400 mm
    Iris Fixed
    Panning range 340 degree
    Tilting range 45.3 degree
    Swivel rotation 340 degree
    Camera Features
    Day/Night Yes (Electrical D/N)
    Noise reduction Yes (2D NR)
    Back light compensation Yes (iBLC)
    Automatic tone reproduction Yes (ATR-Lite)
    Mass 125 g (4.4 oz)
    Dimensions 84 mm x 53 mm (3 3/8 inches x 2 1/8 inches)
    Power requirement DC12 V 10%
    Power consumption Max. 0.9 W
    Operating temperature -10 C to +50 C
    Storage temperature -40 C to +60 C
    Operating humidity 20 % to 80 %
    Storage humidity 20 % to 95 %
    Supplied accessories Operating instructions

    1.Compact and stylish design
      A compact, stylish and discreet design that compliments any surveillance environment.
    2.Super high resolution
      With a horizontal resolution of 540 TV lines, the SSC-N11 produces detailed, sharp images.
    3.Electrical Day/Night function
      This ensures the camera is operating with the optimum sensitivity for both day and night conditions.
      ATR-Lite (Adaptive Tone Reproduction) improves the ability to resolve detail where both high and low luminance areas exist in the same picture.
    5. iBLC
      iBLC (intelligent backlight compensation function) can identify and compensate for areas in the image that are affected by strong light coming from a region in front of the camera e.g. a window. It will adjust exposure to retrieve detail in areas that would otherwise have been under-exposed.
    6. ATW
      ATW is Sonys white balance system. It automatically adjusts the image to give an overall neutral colour balance.
    7. Easy viewing angle adjustment
       Inside the protective dome, the camera has a three-way hinge that allows horizontal, vertical and swivel rotation. This provides a very high degree of flexibility, and allows the camera to be installed on vertical as well as horizontal surfaces.
