  1. Monolayer Indoor Intelligent Middle Speed Dome Camera

  2. Monolayer Indoor Intelligent Middle Speed Dome Camera

    Medium Speed Dome PTZ camera


    Model: BT-MOB

    Place of Origin: Guangdong China (Mainland)




  3. Key Features:
    * Monolayer aluminum sell install easily and quickly, can dissipate heat more sufficiently. Black inner shell makes sharper monitor
    * Be compatible with common cassette mechanism of camera, like SONY, HITACHI, LG and other famous brands with high resolution
    * Running smoothly with low speed, subwoofer noise and no image dithering
    * 64 preset positions.
    * 1 Patrol tracking routs and 1 auto level scan routs.
    * Variable rotation£®pan 0 °ę 80º/s ;tilt 0 °ę 40º/s£©.
    * Continuous 360 º rotations in Omni-directions with no fade zone; Rotation speed can be adjusted by tilting angle of the joystick
    * Auto flips with vertical 180 º in Omni-directions, no fade zone.
    * RS485 integrated various of protocols, PELCO-D, PELCO-P etc
    * 3 class lightning defend, built in 3000V lightning proof, surge resistant




    Image sensor 1/4" SONY CCD
    Power supply AC24V
    Power consumption °‹20W
    Synchronization Internal
    White balance Auto/Manual
    Active Pixels 500 (Level) * 582 (Tilt)
    Lens F=3.3mm-99mm
    Video output BNC1.0VP-P75
    Min Illumination 0.1Lux
    Focal length F=3.25~88mm
    Iris & Zoom Auto/Manual
    Zoom Function 27X optic zoom and 12X digital zoom
    Pan rotation range 360°„ continuously, 0.1°„~80°„/s
    Title rotation range 90°„(180°„ auto flip) , 0.1°„~ 140°„/s
    Control method RS485
    Protocol Pelco-P/D etc.
    Baud rate 2400bps/4800bps/9600bps/19200bps
    Present points 64
    Work temperature 0°„C - 50 °„C

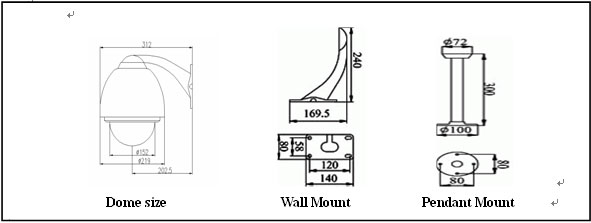

      Installation   Wall, Pendant
      Packing Dimension   L310mm*W290mm*H420mm
      Weight   Wall Mount: 5.05kg    Pendant Mount: 5.00kg
