  1. 170deg view anlge 1/4 cmos 480TVL mini camera with audio wide voltage

  2. 170deg view anlge 1/4 cmos 480TVL mini camera with audio wide voltage

    3.6-24v wide voltage audio 170 degrees Day & night dual mode


    Condition:New
    Model:MCSPY170A


  3. Features:
    * 170degree wide view angle,3.6-24v wide voltage
    * Small Size: easy to install into narrow room and slim tube, etc.;
    * High resolution, high sensitivity, high SNR;
    * Day & night dual mode auto switch;
    * Low Illumination, Low Current and power consumption;
    * CMOS sensor generation IV+DSP chip offer true color & HD video.
    170deg view anlge 1/4 cmos 480TVL mini camera with audio wide voltage

    PICK UP ELEMENT Single chip 1/4CMOS
    SYSTEM NTSC PAL
    NUMBER OF PIXEL NTSC:720(H)¡Á480(V) PAL:720(H)¡Á576(V)
    SENSOR DIMENSION 3.584mm(H)¡Á2.688mm(V)
    HORIZONTAL RESOLUTION Approximately 480TV Lines
    SENSITIVITY 0.1Lux/F2.8
    LENS & VIEW ANGLE F2.8/ 170¡ã
    S/N RATIO 48dB
    AUTO GAIN CONTROL OUT
    WHITE BALANCE CONTROL OUT
    BACK LIGHT COMPENSATION OUT
    VIDEO OUT 1.0V p-p/75ohm
    AUDIO OUT 1.0V p-p/1Kohm
    WEIGHT 8g

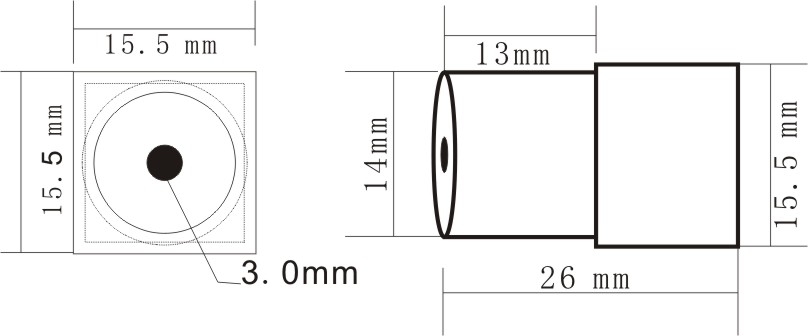

    SIZE(LXWXH) 15.5X15.5X26mm
    WORK CURRENT DC12V: 45mA DC5V: 95mA
    POWER REQUIREMENT DC:3.6V-24V
    OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC ,less than 90% RH
    Connection PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=>White AUDIO

    Contents:
    * mini camera   X1;
    * RCA BNC cable X1;
    * AC adapter    DC5V:X1
