  1. 2.4GHz Wireless A/V Receiver

  2. 2.4GHz Wireless A/V Receiver


    Condition:New
    Model:SPY708E


  3. Functions:
    Wirelessly receive audio & video signal from 2.4GHz wireless cameras, and display on TV/monitor/MP4/DVR,etc.
    2.4GHz Wireless A/V Receiver


    Features:
    * Standard AV output for TV set, MP4, DVR, etc.
    * 2 frequency modes (2.3G & 2.4G) and 8 channels available to avoid interference from Wifi/bluetooth equipments, WLAN network,other 2.4GHz equipments.
    * Small size (69 x 68 x 16 mm) & super light (80g only).

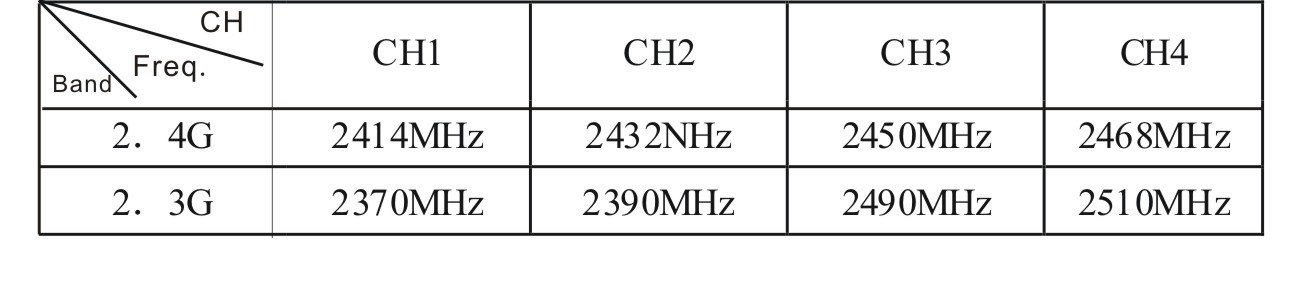

    Relationship between working frequency and channel mode

    2.4GHz Wireless A/V Receiver

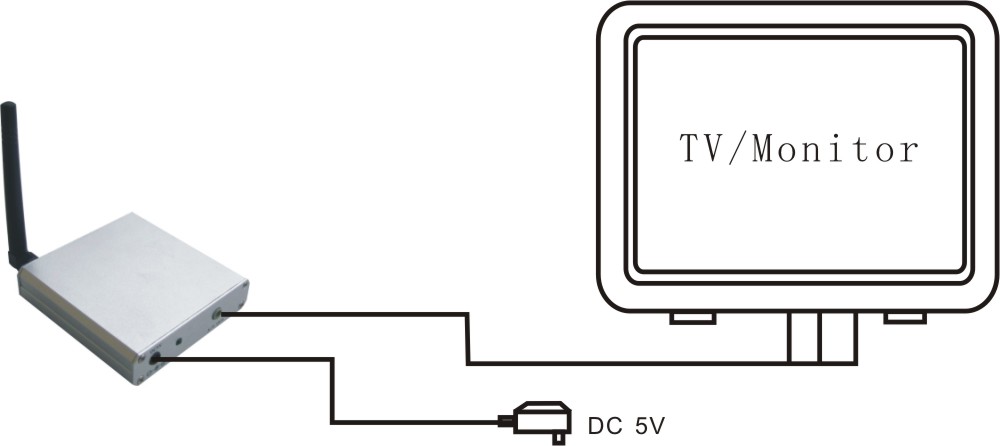

    Diagram:
    2.4GHz Wireless A/V Receiver

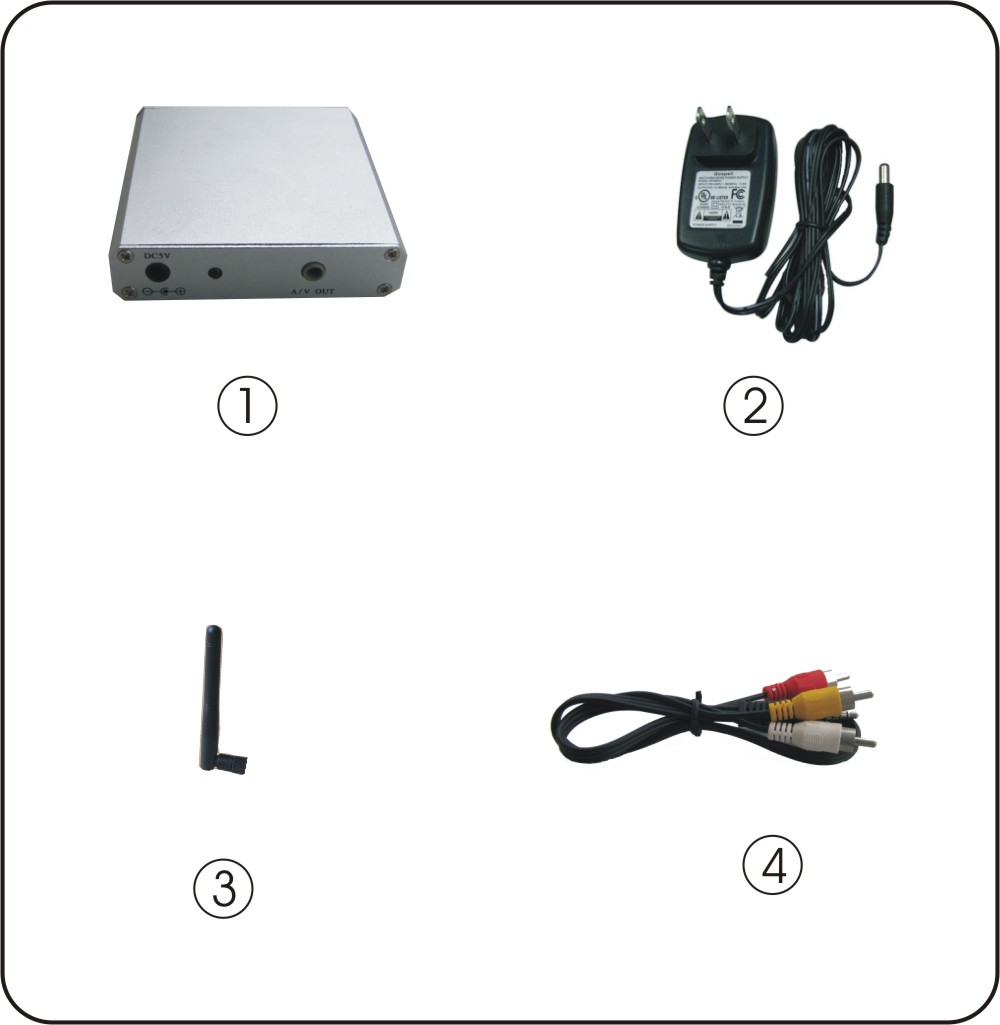

    Package Includes:
    2.4GHz Wireless A/V Receiver

    Specification:



    Receiving Frequency
    ISM 2,360MHz~2,520MHz
    Audio subcarrier frequency 6.0Mhz
    Demodulation Type
    FM
    Antenna
    50ohm SMA
    Receiving Sensitivity
    ¡Ü -85dBm
    Video Output Level
    1Vp-p@75ohm, S/N>38dB
    Audio Output Level
    1Vp-p@1Kohm
    Power Supply
    +5VDC
    Consumption Current
    180mA
    Dimensions(W*L*H)
    68*69*16(mm)(Excluding antenna)
    Weight
    80g
    Operating Temperature
    10 C~+50 C/+14 F~+122 F
    Operating Humidity
    85%RH

    Package:
    1* AC adapter
    1* AV cable
