Your Position:Home >> Mini Spy Camera > > Mini 520TVL CCTV SPY Security Audio Camera 0.008Lux

Related products

  1. Mini 520TVL CCTV SPY Security Audio Camera 0.008Lux

  2. Mini 520TVL CCTV SPY Security Audio Camera 0.008Lux

    520TVL Mini CCTV Camera (0.008lux;16X16X10.5mm) MC493A-with audio


    Condition:New
    Model:MSPY520TVL82



  3. Features & functions:

    It's a  high definition micro-sized CCTV camera with excellent night vision.
    Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
    Two screw holes available, very convenient to fix on the target places.
    Moreover, Micro size make it very easy to install and conceal.
    Full TV system. Applicable worldwide.

    Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

    Mini 520TVL CCTV SPY Security Audio Camera 0.008Lux

    Description:

    PICK UP ELEMENT Single chip 1/3 CMOS
    SYSTEM NTSC PAL
    NUMBER OF PIXEL NTSC:656(H)x492(V) PAL:786(H)x576(V)
    IMAGE SIGNAL PROCESS Digital Signal Processing System
    SENSOR DIMENSION 4.75mm(H)x3.55mm(V)
    HORIZONTAL RESOLUTION Approximately 520TV Lines
    SCANNING SYSTEM 2:1 Interlace
    SENSITIVITY 0.008Lux/F1.2
    LENS & VIEW ANGLE 0.5mm F2.0 / 55deg
    S/N RATIO 52dB
    ELECTRONIC SHUTTER OUT (1/60 S TO 1/100000 S) OUT (1/50 S TO 1/100000 S)
    AUTO GAIN CONTROL OUT
    WHITE BALANCE CONTROL OUT
    BACK LIGHT COMPENSATION OUT
    VIDEO OUT 1.0V p-p/75ohm
    AUDIO OUT 1.0V p-p/1Kohm
    SIZE (L x W x H) 16mm x 16mm x 10.5mm
    WEIGHT 3g
    WORK CURRENT 70mA
    POWER REQUIREMENT DC 3.3V-6V
    OPERATING TEMPERATURE - 10 C ~ +50C ,less than 90% RH
    Connection PIN1- Red DC5V PIN2- Black GND PIN3-Yellow VIDEO OUT PIN4- white AUDIO OUT

    1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
    2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
    3) To view on your computer or laptop you will need a DVR card or USB;
    4) A standalone system that records is a standalone DVR;
    5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.

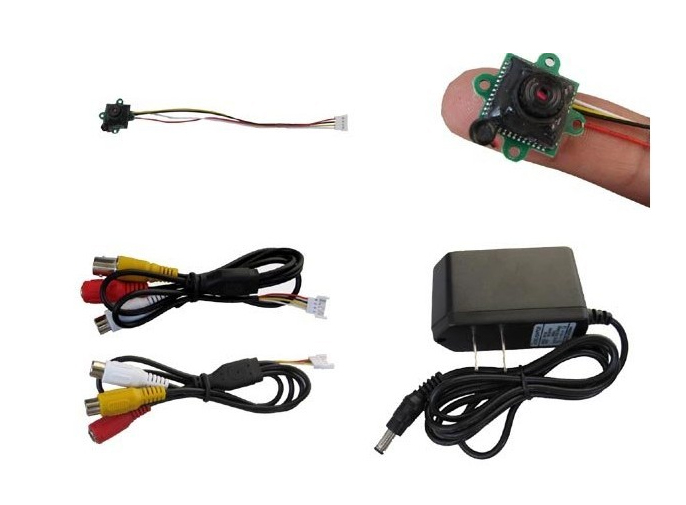

     package:

    1 * Mini camera;
    1 *  AC Adapter
    1 *  RCA/BNC cable (Only one cable, if no choice, we will ship at random)
