  1. Pinhole lens 90deg view 480TVL CMOS Mini CCTV Camera with Audio

  2. Pinhole lens 90deg view 480TVL CMOS Mini CCTV Camera with Audio

    1/4 CMOS 90Deg Pinhole Camera lens plug and play


    Condition:New
    Size:15.5*15.5*20mm
    DC3.6-24V Wide voltage
    480TVL, 0.1lux/F2.8
    Model:MC91AP36



  3. Main Features :

    *  90 degree wide view angle pinhole lens,.6-24v wide voltage;
    *  Small Size: easy to install into narrow room and slim tube, etc.;
    *  High
    resolution, high sensitivity, high SNR;
    *  Day & night dual mode auto switch;
    *  Low Illumination, Low
    Current and power consumption;
    *  CMOS sensor generation IV+DSP chip offer true color & HD  video


    Pinhole lens 90deg view 480TVL CMOS Mini CCTV Camera with Audio
    Pinhole lens 90deg view 480TVL CMOS Mini CCTV Camera with Audio

    PICK UP ELEMENT Single chip 1/4CMOS
    SYSTEM NTSC PAL
    NUMBER OF PIXEL NTSC:720(H)กม480(V) PAL:720(H)กม576(V)
    SENSOR DIMENSION 3.584mm(H)กม2.688mm(V)
    HORIZONTAL RESOLUTION Approximately 480TV Lines
    SENSITIVITY 0.1Lux/F2.8
    LENS & VIEW ANGLE F2.8/ 90กใ
    S/N RATIO 48dB
    AUTO GAIN CONTROL OUT
    WHITE BALANCE CONTROL OUT
    BACK LIGHT COMPENSATION OUT
    VIDEO OUT 1.0V p-p/75ohm
    WEIGHT กกกก6g

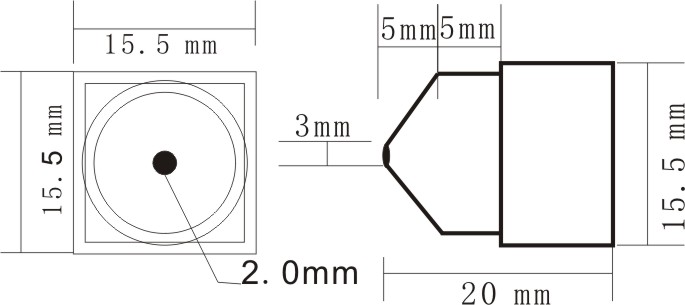

    SIZE(LXWXH) 15.5X15.5X20mm
    WORK CURRENT DC12V: 45mA DC5V: 95mA
    POWER REQUIREMENT DC:3.6V-24V
    OPERATING TEMPERATURE - 10กใ C ~ +50กใC ,less than 90% RH
    Connection PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT

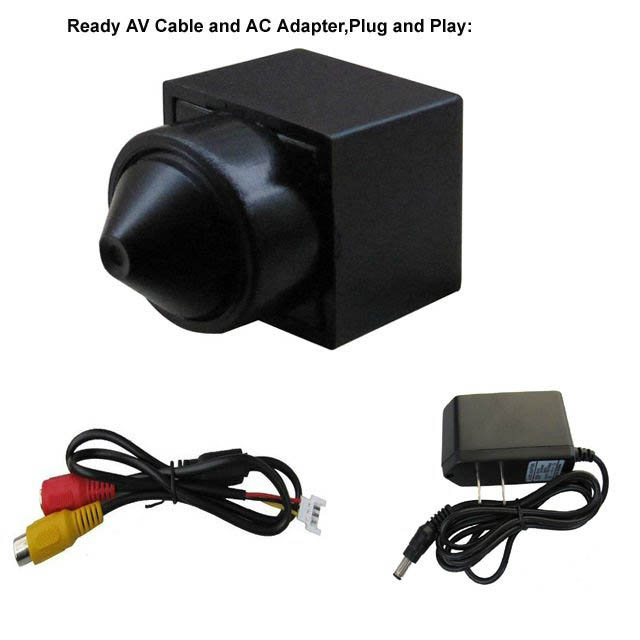

    Contents:
    * mini camera   X1;
    * RCA BNC cable X1;
    * AC adapter DC5VX1
