Your Position:Home >> Mini Spy Camera > > Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio

Related products

  1. Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio

  2. Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio


    Condition:New
    Model:SPYCM921A


  3. Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

    Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio

    Main Features:

    *  Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
    *   Light Weight: easy install without causing unnecessary damage on object surface;
    *  High resolution, high sensitivity, high SNR;
    *  Day & night dual mode auto switch;
    *  Wide view angle(90 degree );
    *  Low Illumination, high quality video record function;
    *  Low Current and power consumption;
    *  CMOS sensor generation IV+DSP chip offer true color & HD video.

    Specifications:

    PICK UP ELEMENT Single chip 1/3 CMOS
    SYSTEM NTSC PAL
    NUMBER OF PIXEL NTSC:656(H)¡Á492(V) PAL:786(H)¡Á576(V)
    SENSOR DIMENSION 4.75mm(H)¡Á3.55mm(V)
    HORIZONTAL RESOLUTION Approximately 520TV Lines
    SCANNING SYSTEM 2:1 Interlace
    SENSITIVITY 0.008Lux/F1.2
    LENS & VIEW ANGLE 0.5mm F2.0 : 90 ¡ã
    S/N RATIO 48dB
    ELECTRONIC SHUTTER OUT (1/60 S TO 1/100000 S) OUT (1/50 S TO 1/100000)S
    AUTO GAIN CONTROL OUT
    WHITE BALANCE CONTROL OUT
    BACK LIGHT COMPENSATION OUT
    VIDEO OUT 1.0V p-p/75ohm
    AUDIO OUT 1.0V p-p/1Kohm (only MC908A / MC908-12 / MC908AE)
    SIZE (L x D ) 27.5mm x 15.0mm
    WEIGHT 8g
    WORK CURRENT DC5V: 70mA DC12V: 40mA
    POWER REQUIREMENT DC 5V/12V
    OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC £¬less than 90% RH

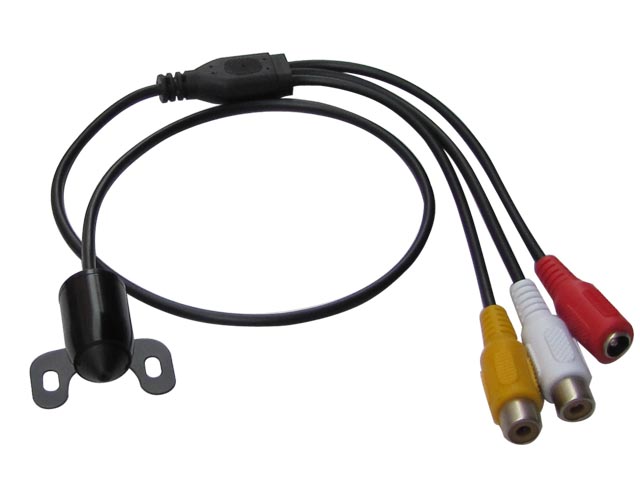

    Connection PIN1=>Red Power supply PIN2=>Black GND PIN3=>Yellow VIDEO OUT PIN4=> White AUDIO OUT

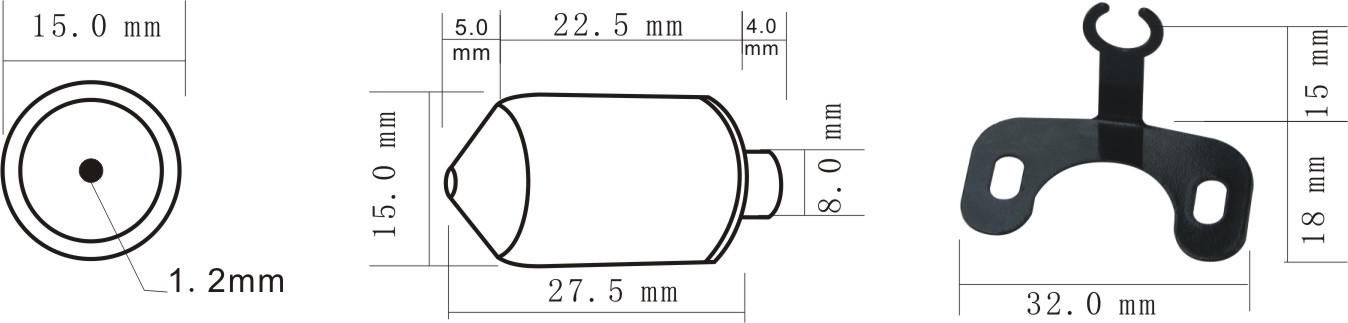

    Outline Size:
    Small size 90 degree 0.008Lux 520TVL Mini CCTV Camera with Audio

    Package:
    Mini camera X1;
    RCA or BNC cableX1;
    AC adapter X1
