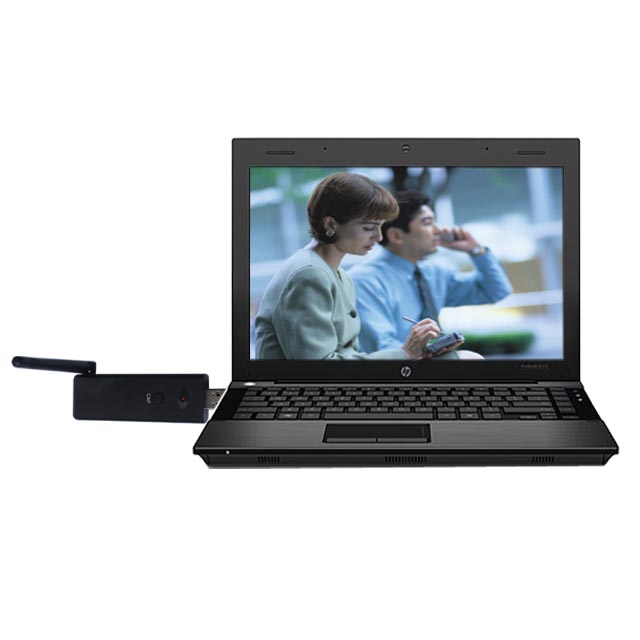

Your Position:Home >> Mini Spy Camera > > Wireless USB DVR small size USB receiver DVR image capture live video motion detection

Related products

  1. Wireless USB DVR small size USB receiver DVR image capture live video motion detection

  2. Wireless USB DVR small size USB receiver DVR image capture live video motion detection

    Small wireless usb spy camera


    Condition:New
    Model:DVRSPY_MNC730


  3. Features:
    * Wireless receive and record A/V signal from wireless cameras (up to 4 cameras, auto-scan)
    * USB 2.0 output to PC, transmission rate up to 480Mpit/s
    * Motion detection: If any intruder, it alarms with sound, and at same time  capture picture saving in hard disk or send e-mail to long-range PC
    * High resolution image capture (1440X1152pix)
    * High speed real time video record, 720 X576 pix@ 30pfs
    * Support MSN Messenger & Skype for long-range live video, like a web camera
    * Sharp and nature image with true color.
    * 4 channels available to avoid possible interference
    * Record file format AVI and play with Windows Media Player
    * Supports Windows 2000/XP/Vista
    * Small size (100X28X15mm,41g) and beautiful appearance

    Wireless USB DVR small size USB receiver DVR image capture live video motion detection

    Functions:
    1. Send e-mails attachment with image.
    2. Save image on Hard Disk.
    3. Sound alarm.
    4. Video signal filter, for filtrate Active and Invalid channel.
    5. Signal lost alarm.
    6. Motion Detection.
    7. Adjustable sensitivity.
    8. Automatically lock, while not any operate.
    9. Schedule Monitoring sessions, for timer snap.
    10. Record video/audio (with usb2.0 audio interface), snap shot.
    11. Automatic Space Management. Stop recorder or capture still automatically on disk full.
    12. Support 4 Channel video inputting on one computer.
    13. Support on Screen Display. Display date and time, or channel description on video.
    14. Supports manual open/close Invalid channel, or add/delete channel description.
    15. Supports login and logout, by User Name and Password.
    16. Supports running background stealthy.
    17. One video/audio input
    18. Receiving Frequency: channel 1: 2.414GHZ channel 2: 2.432GHZ channel 3: 2.450GHZ channel 4: 2.468GHZ

    Specification:
    Power Supply:  Provided by USB Port
    Consumption Current (Max.): 180mA
    Receiving Frequency: ISM 2,400MHz~2,483MHz
    Input VSWR: 2:1
    Demodulation Type: FM
    Intermediate Frequency: 480MHz
    Frequency Stabilization: +/- 100 ppm
    Local Leakage at RF Input Terminal: <=-55 dBm
    Receiving Sensitivity: <= -85 dBm
    Video Output Signal Impedance: 75 ohm
    Video Output Signal Level: 1.0 V +/- 0.15 Vpp
    Video Output Signal Polarity: Negative
    Video S/N Ratio: 38dB
    Audio Output Signal Impedance: 600 ohm
    Audio Output Signal Level: 1.25 V +/- 0.25 Vpp / 1 kHz
    Audio Output Frequency Range: 250 Hz ~ 10 kHz
    Left Subcarrier Frequency: 6.0 MHz
    Unobstructed Effective Range: 100 m (Min.)
    Dimensions(WxLxH): 10X2.8X1.5cm (Excluding Antenna)
    Weight : 41G

    Package:
    Antenna 1 PC
    DC/AV cable 1 PC
    User manual CD 1 PC
