* 10X optical zoom auto focus camera
* 1/4" COLOR ZOOM CCD CAMERA
* Mintron MTV-54G15P 10X 1/4 COLOR ZOOM CCD CAMERA
* ATW: Auto tracking white balance.
* AWC: One push lock white balance.
Features:
| MODELNO. | MTV-54G15N | MTV-54G15P | |||
| TV SYSTEM | NTSC | PAL | |||
| IMAGE SENSOR | 1/4-inch CCD Image Sensor | ||||
| CCD TOTAL PIXELS | ~ 270K | ~ 320K | |||
| SCANNING SYSTEM | 525 lines, 60 fields/sec | 625lines, 50 fields/sec | |||
| SYNC SYSTEM | Internal / External(VD-Lock / ”Ą1Hz) | ||||
| MINIMUMILLUMINATION | Legacy mode | 1.5 Lux F1.8 | |||
| Star light Mode | 0.05 Lux F1.8 | ||||
| RESOLUTION | 380TVL | ||||
| S / N RATIO | 46dB ( MIN) / 50dB ( TYP ) (AGC OFF,r=1,APC OFF,Y-OUT) | ||||
| WHITE BALANCE | Mode | AUTO (ATW or AWB) | |||
| Range | 3200 ~ 9600 ºK | ||||
| B.L.C. FUNCTION | ON/OFF | ||||
| GAMMA CORRECTION | 0.45 /1 | ||||
| AGC | AUTO (24dB max | ||||
| ALC | AUTO / FIX | ||||
| IMAGE NEGATIVE | Select by OSD menu | ||||
| MONITION DETECT | 48 zone (select by OSD) | ||||
| CROSS LINE | ON/OFF Select by OSD menu (position adj. by software) | ||||
| FREEZE FUNCTION | Alarm in trigger or Select by OSD | ||||
| ELECTRONIC SHUTTER | AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step | ||||
| LENS | 10X optical ZOOM LENS£¬F1.8~2.9£¬f=4.2~42.0mm | ||||
| ZOOM | 100X (10X optical 10X Digital) | ||||
| FOCUS | Auto / Manual | ||||
| POSITION | 64 Position (Zoom£¬Focus) | ||||
| VIDEO OUTPUT | Composite & Y/C output 1.0Vp-p at 75 ohm | ||||
| CONTROL FUNCTION | Programmable RS-232 and RS-485 (*Driver Option) * RS-485 will be standard offer if not indicate one of driver options when Order. | ||||
| OSD CONTROL | Zoom, Focus, IRIS, WB, AGC, Position, C-Gain, APC Gain | ||||
| OSD LANGUAGE SELECT | ENGLISH / CHINESS_Simp / JAPANESE | ||||
| OPERATION TEMPERATURE | -10”ę TO 50”ę | ||||
| OPERATIONAL HUMIDITY | within 85%RH | ||||
| POWER SUPPLY | DC12V”Ą1V / 3.6W(Max) | ||||

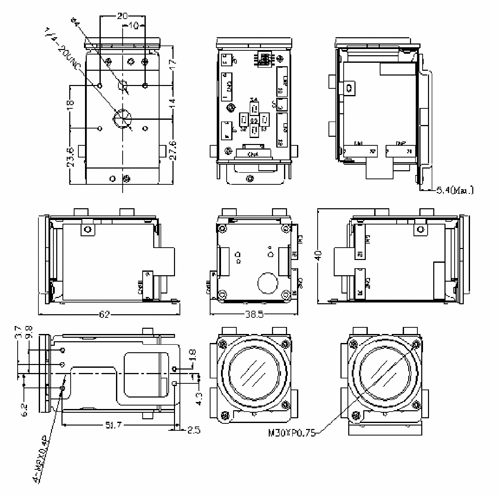

Dimensions :
