  1. Indoor Suspended Intelligent Low Speed Dome Camera

  2. Indoor Suspended Intelligent Low Speed Dome Camera


    Model: BT-LIC

    Place of Origin: Guangdong China (Mainland)




  3. Key Feature:
     * ABS material for outer cover and imported Acrylic out-cover and delicate design, black inner shell can monitor much sharper.
     * Be compatible with common cassette mechanism of camera, like SONY, HITACHI ,LG and other famous brands with high resolution.
     * Running smoothly with low speed, subwoofer noise and no image dithering
     * 64 preset positions.
     * 1 Patrol tracking routs and 1 auto level scan routs.
     * Variable rotation£¨pan 0 ¡« 15º/s ;tilt 0 ¡« 15º/s£©;  Auto level scan
     * Continuous 360 º rotations in Omni-directions no fade zone; Rotation speed can be adjusted by tilting angle of the joystick
     * RS485 integrated various protocols, PELCO-D, PELCO-P etc
     * 3 class lightning defend, built in 3000V lightning proof, surge resistant

    Electrical specifications

    Power Input AC24V/2A (no identity "+" or "-")
    Power Consumption 20W

    Settings£º

    Decoder Built-in
    Preset Position 64 presets
    Left&Right Rotation Range 360¡ãContinuous Rotation
    Left&Right Speed 0.1¡ã£­15¡ã/S
    Up&Down Rotation Range 90¡ãVertical, 180¡ãAuto flip
    Up&Down Speed 0.1¡ã£­15¡ã/S
    Control Method RS485
    Protocol Pelco-P/D etc
    Baud rate 2400bps/4800bps/9600bps/19200bps

    Working environment£º

    Working Temperature Indoor£º0ºC ~ 50ºC

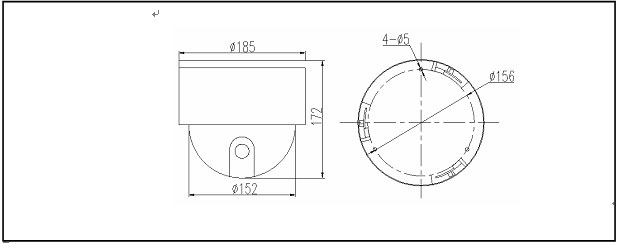

    Physical£º

    Packing Dimension(mm) L260mm*W230mm*H260mm
    Weight (kg) Surface Mount: 2.6 Kg In-ceiling Mount: 3.44 Kg
